Machine Overview
Chuck Size: 24"
Spindle Speed: 1,200 RPM
Max Swing: 23.6"
Weight: 44,000 LBS
swing over cross slide: 23.6in
maximum turning diameter: 22in
maximum turning length: 59in
distance between centers: 62in
spindle bore: 6in
spindle nose: A2-15
main motor (30 min / continuous): 37 / 30HP
number of turret positions: 2 x 12 Stations
x-axis travel: 12.6in
z-axis travel: 59in
tailstock stroke of body: 55in
tailstock quill stroke: 5.9in
tailstock quill diameter: 5.9in
tailstock taper: MT #5
rapid traverse (x & z): 710IPM
floor space: 230 x 118 x 115in
Chip Conveyor
Tailstock

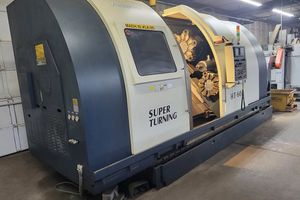

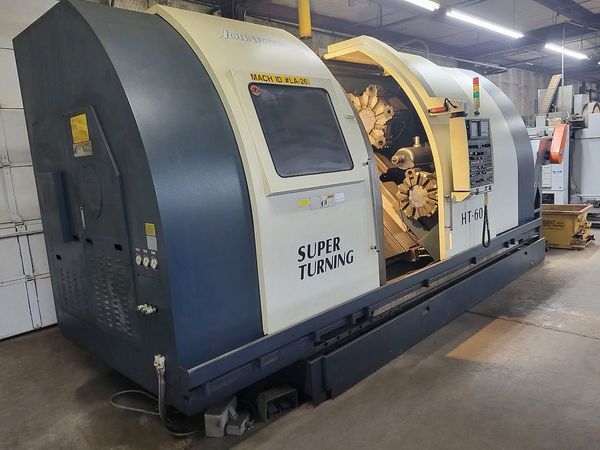

Pre-owned JOHNFORD HT60 2004 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc OI-TC control. This CNC Machine is currently located in Oklahoma. This JOHNFORD CNC Lathe is available for a limited time. Get a quote today on this HT60 before it's gone.
