2024 Aluminum Alloy: Properties, Components, Applications, and Resistance
The 2024 aluminum alloy is one of the most popular high-strength alloys used in various industries today. Known for its excellent strength-to-weight ratio and fatigue resistance, this alloy is commonly used in aerospace and other high-performance engineering applications. However, it has lower corrosion resistance compared to other aluminum alloys, making it better suited for environments where its superior mechanical properties are essential but where corrosion resistance is less of a concern.
In this article, we will explore the general properties, chemical composition, applications, and corrosion resistance of 2024 aluminum alloy.
General Properties of 2024 Aluminum Alloy
| Property | Value |
|---|---|
| Density | 2.78 g/cm³ (0.100 lb/in³) |
| Ultimate Tensile Strength | 470 MPa (68 ksi) |
| Yield Strength | 325 MPa (47 ksi) |
| Fatigue Strength | 138 MPa (20 ksi) |
| Modulus of Elasticity | 73.1 GPa (10.6 x 10³ ksi) |
| Thermal Conductivity | 121 W/m·K |
| Melting Point | 502 - 638°C (935 - 1180°F) |
| Shear Strength | 283 MPa (41 ksi) |
| Hardness (Brinell) | 120 |
| Elongation at Break | 10-15% |
| Machinability | Good |

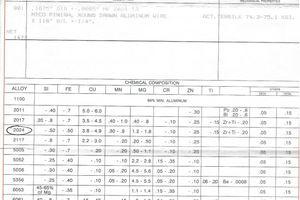

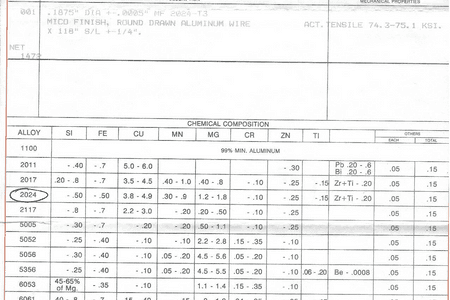

Chemical Composition of 2024 Aluminum Alloy
| Element | Percentage (%) |
|---|---|
| Aluminum (Al) | Balance |
| Copper (Cu) | 3.8 - 4.9 |
| Manganese (Mn) | 0.30 - 0.9 |
| Magnesium (Mg) | 1.2 - 1.8 |
| Zinc (Zn) | 0.25 max |
| Silicon (Si) | 0.50 max |
| Iron (Fe) | 0.50 max |
| Chromium (Cr) | 0.10 max |
| Titanium (Ti) | 0.15 max |
| Other Elements | 0.15 max (total) |
Applications and Industries for 2024 Aluminum Alloy
Common Applications:
- Aerospace Structures: Fuselage, wing structures, and other high-stress components where strength and fatigue resistance are essential.
- Automotive Components: High-performance parts, especially in motorsport and lightweight vehicle designs.
- Military Equipment: Aircraft frames, military vehicles, and armor systems.
- Marine: Limited applications in marine structures where weight savings are more critical than corrosion resistance (usually with protective coatings).
- Mechanical Parts: Gears, shafts, and other high-stress components in industrial equipment.
- Cycling: Frames and components for lightweight, high-performance bicycles.
Industries:
- Aerospace: Due to its excellent fatigue resistance and high strength-to-weight ratio, 2024 aluminum is extensively used in aircraft and space structures.
- Automotive: Used in motorsports and performance vehicles where reducing weight is essential for performance.
- Defense: Military-grade equipment and vehicles, including armored systems and aircraft.
- Industrial Engineering: Heavy machinery and structures where lightweight but durable materials are needed.
- Sports Equipment: Performance-driven applications such as bike frames and specialized sports equipment.
Corrosion Resistance and Treatment Options
One of the drawbacks of 2024 aluminum alloy is its relatively poor corrosion resistance compared to other aluminum alloys, particularly those with higher silicon or zinc content. Its copper content, which enhances its strength, also makes it more susceptible to corrosion in moist or humid environments.
Corrosion Resistance:
- General Corrosion: Without treatment, 2024 aluminum is prone to corrosion, especially in environments with moisture, saltwater, or chemicals. For this reason, it is commonly used with protective coatings or in environments where corrosion resistance is not a primary concern.
- Anodizing: This alloy can be anodized to increase its corrosion resistance, but it does not respond as well to this treatment as some other aluminum alloys (such as 6061).
- Cladding: In aerospace applications, 2024 aluminum is often clad with a thin layer of corrosion-resistant pure aluminum to prevent surface corrosion.
- Protective Coatings: Paint, powder coating, or chemical conversion coatings (such as Alodine) are often used to enhance the alloy's resistance to corrosion, particularly in harsh environments.
Resistance in Various Conditions:
- Marine Environments: 2024 aluminum is not ideal for marine applications unless it is treated with protective coatings to prevent corrosion from saltwater exposure.
- Outdoor Conditions: In areas with high humidity or rain, protective coatings are essential to prevent oxidation and surface corrosion.
- Stress Corrosion Cracking: In certain stress-related environments, 2024 aluminum can be prone to stress corrosion cracking. This makes it critical to consider the use of coatings and proper maintenance in applications where stress is constant.
Conclusion
2024 aluminum alloy remains a go-to material for high-strength applications in aerospace, defense, and automotive industries. Its unique combination of strength, fatigue resistance, and lightweight properties makes it ideal for structures that require top performance under stress. However, its lower corrosion resistance compared to other aluminum alloys means it must often be used with protective coatings or in environments where corrosion is not a primary concern. Understanding how to best leverage the properties of 2024 aluminum is key to optimizing its performance in critical engineering applications in 2024 and beyond.
