Seller Needs:
$17,500|
5368
|
2

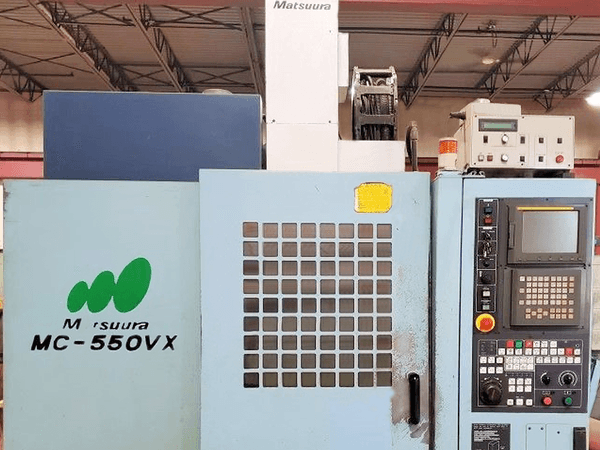

Pre-owned MATSUURA MC550VX 2001 Vertical Machining Center. This Vertical Machining Center has 3,952 cutting time and is equipped with a Fanuc Series 16i-M control. This CNC Machine is currently located in Wisconsin. This MAT...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 21.7"
Y Axis Travel: 15.74"
Z Axis Travel: 18.1"
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,181 IPM
Table Size: 29.9"x15.96"
Spindle Motor: 10 HP
Spindle Speed: 8,000 RPM
Tool Changer: 30 ATC
Tool Type: BT40
Box ways
Dimensions: 99" x 87" x 103"
Weight: 9,800 LBS
Y Axis Travel: 15.74"
Z Axis Travel: 18.1"
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,181 IPM
Table Size: 29.9"x15.96"
Spindle Motor: 10 HP
Spindle Speed: 8,000 RPM
Tool Changer: 30 ATC
Tool Type: BT40
Box ways
Dimensions: 99" x 87" x 103"
Weight: 9,800 LBS
Options:
Fanuc Series 16i-M
Chip Conveyor
4th Axis Rotary Table
Yuasa rotary table
Turbo conveyor
Rigid tapping
Through spindle coolant with high pressure
Chip Conveyor
4th Axis Rotary Table
Yuasa rotary table
Turbo conveyor
Rigid tapping
Through spindle coolant with high pressure
Seller:
ReneH996
Location:
WI
