Seller Needs:
$52,000|
1433
|
1

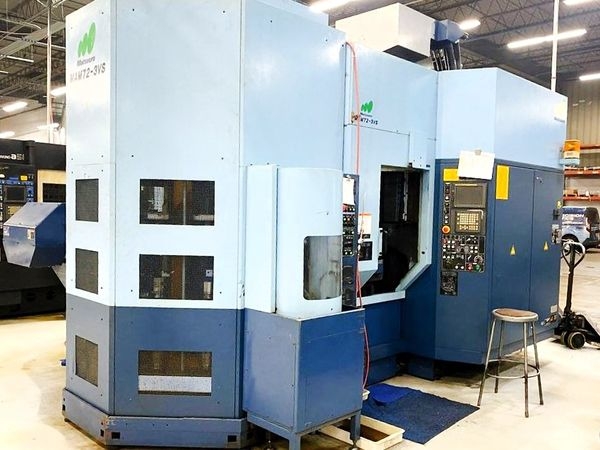

This 2001 Matsuura MAM 72-3VS Vertical Machining Center is up for sale. The machine is offered in great working condition as shared by the seller. This machining center is operated with a Fanuc Series 16i-M CNC Control, a wel...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 26.77"
Y Axis Travel: 15.74"
Z Axis Travel: 24.6"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 BT
Tool Changer: 240 ATC
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 1,968 IPM
Number of Table Pallet(S) 40
Spindle Nose to Table: 2.36" - 29.96"
A - Axis Indexing +65 ~ -110 Degree
C - Axis Indexing 360 Degree
Cutting Feed Rate 1574 IPM
Tool Diameter 3.14"
Tool Length 10.23"
Tool Weight 17 LBS.
Weight: 33,000 LBS
Max Table Load: 132 LBS
Y Axis Travel: 15.74"
Z Axis Travel: 24.6"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 BT
Tool Changer: 240 ATC
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 1,968 IPM
Number of Table Pallet(S) 40
Spindle Nose to Table: 2.36" - 29.96"
A - Axis Indexing +65 ~ -110 Degree
C - Axis Indexing 360 Degree
Cutting Feed Rate 1574 IPM
Tool Diameter 3.14"
Tool Length 10.23"
Tool Weight 17 LBS.
Weight: 33,000 LBS
Max Table Load: 132 LBS
Options:
Fanuc Series 16i-M
Chip Conveyor
Coolant Thru Spindle
5 Axis
5 Axis Trunnion Table
40 Pallets
Chip Conveyor
Coolant Thru Spindle
5 Axis
5 Axis Trunnion Table
40 Pallets
Seller:
JeffH321
Location:
NY
