1999 MAZAK DUAL TURN 20

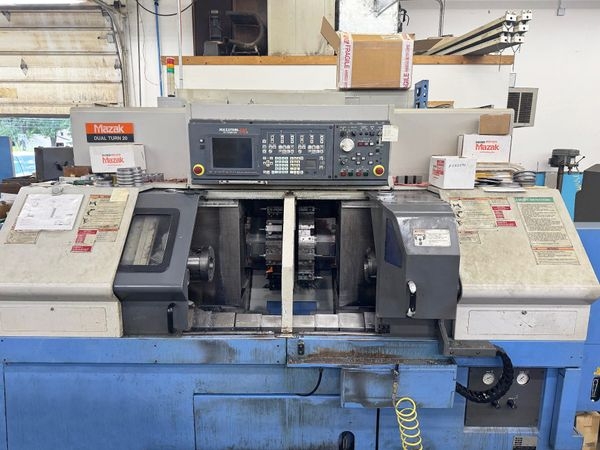

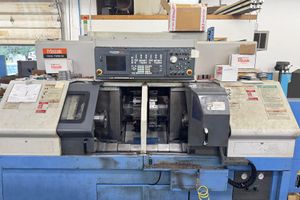

1999 Mazak Dual Turn 20 – CNC Lathe Specifications

General:

Machine Type: CNC Turning Center (Twin-Spindle, Twin-Turret)

Model: Dual Turn 20

Year: 1999

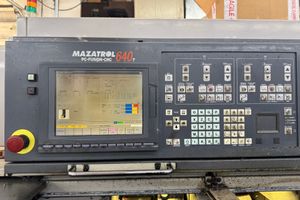

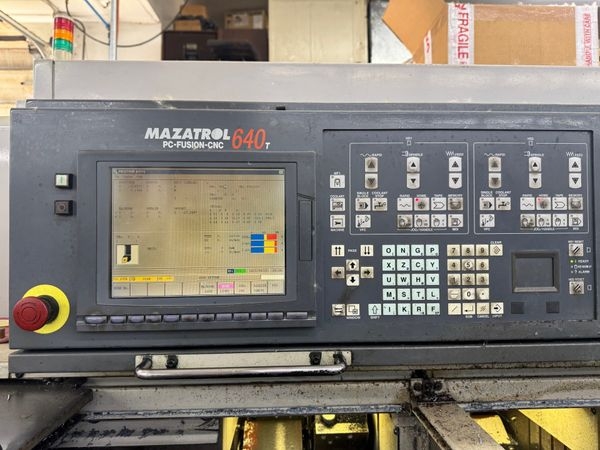

CNC Control: Mazatrol 640T Fusion

Spindles: 2 (Left & Right)

Turrets: 2 (12-station drum-style turrets)

Capacity:

Max Swing Over Bed: 12.6 in (320 mm)

Max Cutting Diameter: 10.0 in (254 mm)

Max Cutting Length: ~19.7 in (500 mm)

Bar Capacity: 2.0 in (50 mm)

Spindle Nose Distance (Max): 49.21 in (1,249 mm)

Spindles:

Spindle Nose: A2-6

Spindle Bore: ~2.4 in (61 mm)

Bar Capacity: 2.0 in (50 mm)

Spindle Speed: 35 – 4,750 RPM

Spindle Motor: 20 HP (Main), ~15 HP (Secondary)

Axes Travel:

X-Axis Travel (Both Turrets): 9.06 in (230 mm)

Z-Axis Travel (Both Turrets): 19.69 in (500 mm)

Rapid Traverse (X/Z): 1,200 / 1,300 IPM

Tooling & Turrets:

Number of Turrets: 2

Tool Stations per Turret: 12

Turret Type: Drum-style (live tooling support not standard)

Tool Eye / Tool Setter: Included

Features & Options:

Twin 8-inch Hydraulic Chucks

Parts Catcher

Automatic Work Transfer Between Spindles

Chip Conveyor

Coolant System

Dimensions & Weight:

Approx. Machine Weight: 13,200 lbs (6,000 kg)

Machine Dimensions (L x W x H): 107? x 159? x 80?

Electrical: 220V / 3-Phase / 60Hz (check plate for exact)
