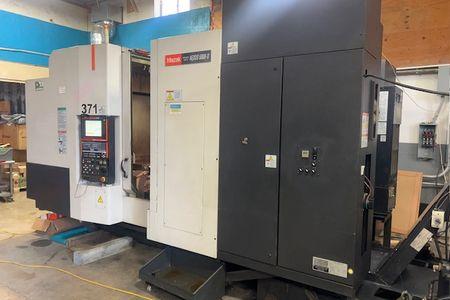

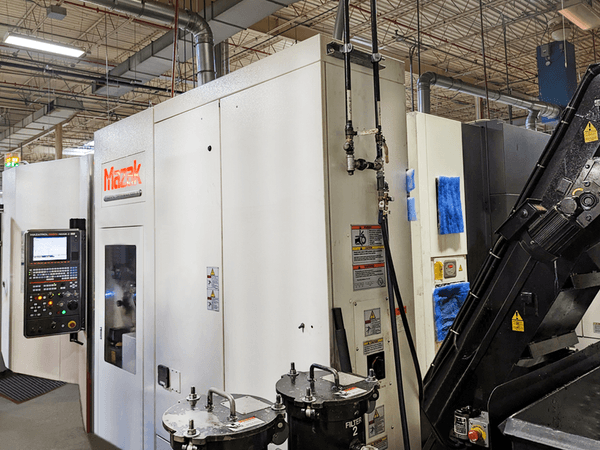

This 2014 MAZAK HCN5000 Horizontal Machining Center is up for sale. Taking a look at the machine, you can see it has been well taken care of and is still in good condition. The machine has been operational daily, assisting us...Read More
Notify Me:
Specs:
X Axis Travel: 28.74"
Y Axis Travel: 28.74"
Z Axis Travel: 31.5"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Max Pallet Load: 1102 LBS
Spindle Taper: 40 CT
Tool Changer: 160 ATC
Maximum Workpiece Height 39.37"
Max Workpiece Dimensions 31.5” x 39.37”
Indexing Time 1.4 sec/90 Deg
Dis. Between Table Top to Spindle nose 2.76” – 34.25”
Dis. Between Pallet to Spindle Center 3.94” – 32.68”
Tool Diameter 3.74", 5.9"
Tool Length 17"
Tool Weight 26 LBS.
Tool Change Time 1.8 SEC
Pallet Size: 50019.7" x 19.7"
Weight: 24,250 LBS
Y Axis Travel: 28.74"
Z Axis Travel: 31.5"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Max Pallet Load: 1102 LBS
Spindle Taper: 40 CT
Tool Changer: 160 ATC
Maximum Workpiece Height 39.37"
Max Workpiece Dimensions 31.5” x 39.37”
Indexing Time 1.4 sec/90 Deg
Dis. Between Table Top to Spindle nose 2.76” – 34.25”
Dis. Between Pallet to Spindle Center 3.94” – 32.68”
Tool Diameter 3.74", 5.9"
Tool Length 17"
Tool Weight 26 LBS.
Tool Change Time 1.8 SEC
Pallet Size: 50019.7" x 19.7"
Weight: 24,250 LBS
Options:
Mazatrol Matrix Nexus 2
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
