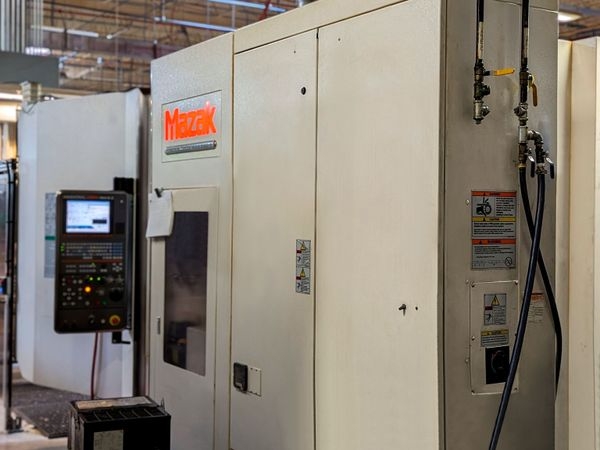

This 2014 MAZAK HCN5000 Horizontal Machining Center has served its role in our production line with great distinction. It has been in constant use, a testament to its hardiness and durability. We are an original equipment man...Read More
Notify Me:
Specs:
X Axis Travel: 28.74"
Y Axis Travel: 28.74"
Z Axis Travel: 31.5"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Max Pallet Load: 1102 LBS
Spindle Taper: 40 CT
Tool Changer: 160 ATC
Maximum Workpiece Height 39.37"
Max Workpiece Dimensions 31.5” x 39.37”
Indexing Time 1.4 sec/90 Deg
Dis. Between Table Top to Spindle nose 2.76” – 34.25”
Dis. Between Pallet to Spindle Center 3.94” – 32.68”
Tool Diameter 3.74", 5.9"
Tool Length 17"
Tool Weight 26 LBS.
Tool Change Time 1.8 SEC
Pallet Size: 50019.7" x 19.7"
Weight: 24,250 LBS
Y Axis Travel: 28.74"
Z Axis Travel: 31.5"
Rapid Rate X Axis: 2,362 IPM
Rapid Rate Y Axis: 2,362 IPM
Rapid Rate Z Axis: 2,362 IPM
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Max Pallet Load: 1102 LBS
Spindle Taper: 40 CT
Tool Changer: 160 ATC
Maximum Workpiece Height 39.37"
Max Workpiece Dimensions 31.5” x 39.37”
Indexing Time 1.4 sec/90 Deg
Dis. Between Table Top to Spindle nose 2.76” – 34.25”
Dis. Between Pallet to Spindle Center 3.94” – 32.68”
Tool Diameter 3.74", 5.9"
Tool Length 17"
Tool Weight 26 LBS.
Tool Change Time 1.8 SEC
Pallet Size: 50019.7" x 19.7"
Weight: 24,250 LBS
Options:
Mazatrol Matrix Nexus 2
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
