MAZAK HCN5000II CNC Mill

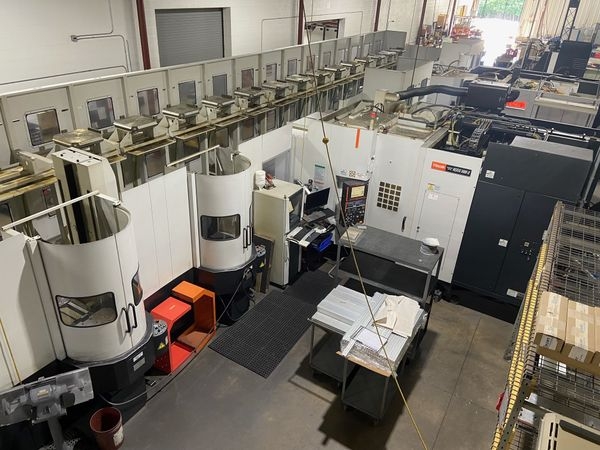

2009 Mazak HCN5000(II) & 2015 Mazak HCN5000(III) (2) Machine / 40 Station Palletech System CNC Horizontal Machining Center

2009 HCN-5000(II) Specifications:

Pallet Size…………………………19.69 x 19.69

X-Axis TRAVEL……………………….28.74

Y-Axis TRAVEL……………………….28.74

Z-Axis TRAVEL……………………….29.13

Spindle Nose………………………..Cat 40

Spindle RPM…………………………12,000 RPM

Spindle Horsepower (30 Min/Cont)………40 HP/30 HP

Magazine Capacity……………………120 ATC



2015 HCN-5000(III) Specifications:

Pallet Size…………………………19.68” x 19.68”

X-Axis TRAVEL……………………….28.74”

Y-Axis TRAVEL……………………….28.74”

Z-Axis TRAVEL……………………….31.5”

Pallet Indexing – Optional NC Rotary…… .0001 Deg x 3,600,000 (NC Rotary)

Rapids……………………………. 2362 IPM

Spindle Nose………………………..Cat 40

Spindle RPM…………………………14,000 RPM

Magazine Capacity……………………160 ATC

Equipped With:

Mazatrol Matrix / Matirx 2 Nexus Control

40 Station FMS
40 Pallets

Mazatrol Matrix Nexus 2
Chip Conveyor
Probe
Coolant Thru Spindle
Programmable Coolant
360,000 Full 4th
Pallet Pool/FMS
