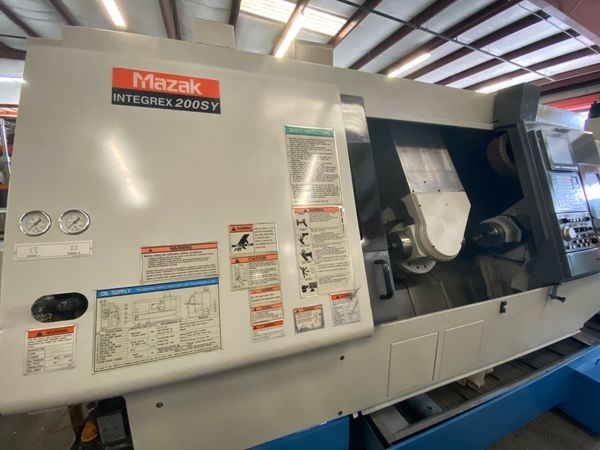

Pre-owned MAZAK INTEGREX 200SY 2001 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fusion 640MT control. This CNC Machine is currently located in Florida. This MAZAK CNC Lathe is available for a limited time. Get a quote today on this INTEGREX 200SY before it's gone.
Notify Me:
Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 5,000 Main / Sub RPM
Spindle Motor: 30 HP
X Axis Travel: 20.87"
Z Axis Travel: 42"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 40 ATC Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 21.25"
Max Turning Length: 42"
Max Swing: 21.25"
Dimensions: 138" x 83" x 96"
Weight: 13,000 LBS
Chuck Size: 8"
Spindle Speed: 5,000 Main / Sub RPM
Spindle Motor: 30 HP
X Axis Travel: 20.87"
Z Axis Travel: 42"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 40 ATC Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 21.25"
Max Turning Length: 42"
Max Swing: 21.25"
Dimensions: 138" x 83" x 96"
Weight: 13,000 LBS
Options:
Fusion 640MT
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Background Path Check
EIA / ISO
Y Axis Control
Synchro Mill Tapping
Scale Feed Back
Direct DWG Size
User Macro
600 Macro Variables
Work Coordinates Select
Polar Coordinates Imput
Helical Interporation
Coordinate Rotation
B Axis Control
Helical Tap
Pitch Error
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
Y Axis
5 Axis
Background Path Check
EIA / ISO
Y Axis Control
Synchro Mill Tapping
Scale Feed Back
Direct DWG Size
User Macro
600 Macro Variables
Work Coordinates Select
Polar Coordinates Imput
Helical Interporation
Coordinate Rotation
B Axis Control
Helical Tap
Pitch Error
