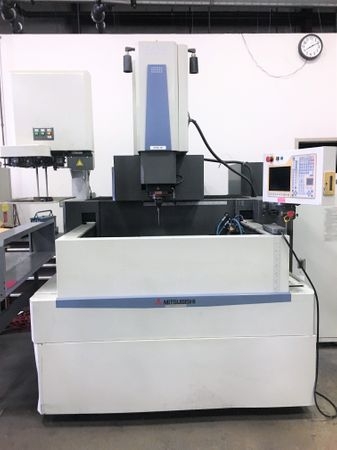

Used MITSUBISHI EA30 EDM
Specifications:
X Axis 27.6"
Y Axis 19.7"
Z Axis 13.8"
Tank Size 50.4" x 33.5" x 17"
Max Electric Die Fluid 15.7"
Table Dimensions 43.3" x 29.5"
Max Work Piece weight 4,400 lbs
Max Electrode weight 400 lbs
Reservoir Tank 210 Gal
Table to Platen Distance 11.8" - 25.6"
Machine Dims 99.2" x 120.3" x 98.2"
Y Axis 19.7"
Z Axis 13.8"
Tank Size 50.4" x 33.5" x 17"
Max Electric Die Fluid 15.7"
Table Dimensions 43.3" x 29.5"
Max Work Piece weight 4,400 lbs
Max Electrode weight 400 lbs
Reservoir Tank 210 Gal
Table to Platen Distance 11.8" - 25.6"
Machine Dims 99.2" x 120.3" x 98.2"
Equipped With:
Mitsubishi CNC
Type: CNC Sinker
C Axis
Type: CNC Sinker
C Axis
