Machine Overview

Specs:
Spindle Speed: 4,000 RPM
Chuck Size: 10
Max Diameter Bar Capacity: 2.56
Max Swing Over Bed: 19.68
Max Turning Dia (Live/Turning Tools): 19.68 / 14.56
Max Machining Length: 28.3
Main Motor: 25 / 20 HP
Spindle Speed: 30 – 4000 RPM
Tool Magazine: 60
Spindle Bore: 3.1
Spindle Nose: A2-8
Sub Spindle Chuck Size: 8
Sub Spindle Bar Capacity: 1.65
Sub Spindle Motor: 10 / 7.5 HP
Rapid Traverse Rates (X&Z/Y): 1181 / 590 IPM
X-Axis Travel: 23.6
Z-Axis Travel: 39.5
C-Axis Index (Main & Sub): 0.001 Degrees
Y-Axis Travel: +/- 2.95
B-Axis: 0.001
Milling Speed: 80 – 8000 RPM
Milling Motor: 10 / 7.5 HP
Options:
Seicos CNC Control
Chip Conveyor
Tailstock
Live Tooling
Y Axis
5 Axis
Description:

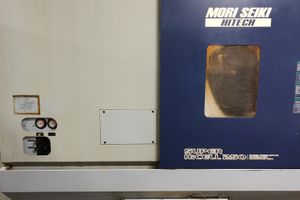

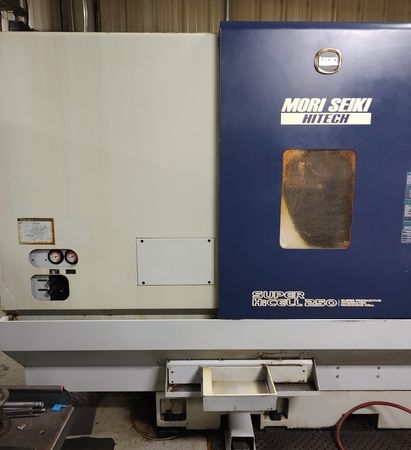

This 2003 MORI SEIKI HITECH SUPER HICELL 250 CNC Lathe is a fine piece of machinery equipped with the Seicos CNC Control system. It comes with several features and upgrades, making it a highly functional tool for various machining tasks.

The lathe includes a chip conveyor that simplifies the task of clearing away metal shavings, ensuring smooth operation. The addition of a tailstock provides support for long workpieces, enhancing the versatility of this CNC lathe.

One of the notable features of this model is live tooling. With this, you can perform secondary operations without needing additional setups, thus saving time. The inclusion of a Y-axis offers additional movement flexibility, allowing more complex machining processes.

Moreover, the machine is equipped with 5-axis capabilities. This increases the range of parts that can be machined, allowing for intricate designs and detailed parts to be crafted with higher precision.

This 2003 model has been in use but remains a viable option for any machine shop looking to add a multi-functional CNC lathe. Whether you're involved in small-scale production or larger manufacturing tasks, this lathe provides the tools to expand your machining range effectively.
