Seller Needs:
Make Offer|
17
|
0

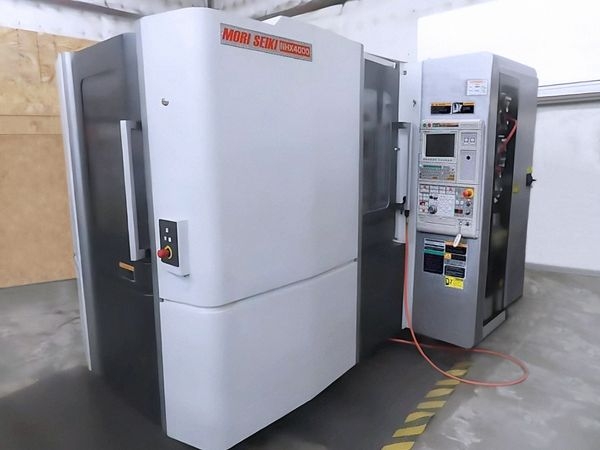

Pre-owned MORI SEIKI NHX4000 2011 Horizontal Machining Center. This Horizontal Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Oregon. This MORI SEIKI Hor...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
X Axis Travel: 22"
Y Axis Travel: 22"
Z Axis Travel: 26"
Rapid Rate X Axis: 196 IPM
Rapid Rate Y Axis: 196 IPM
Rapid Rate Z Axis: 196 IPM
Max Pallet Load: 882 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Tool Diameter 2.7", 5.5"
Tool Length 17.7"
Tool Weight 26.4 LBS.
Tool Change Time 2.5 SECOND
Pallet Size: 15.7" x 15.7"
Dimensions: 107" x 166" x 100"
Weight: 18,700 LBS
Batteries were replaced with new on 7/27/2024 at Mori Seiki tech suggestion. Video was submitted on 10/7/2024 by owner. Unit is under power; available for inspection and test.
Buyer responsible for equipment loading expenses.
Buyer responsible for freight logistics and expenses.
Y Axis Travel: 22"
Z Axis Travel: 26"
Rapid Rate X Axis: 196 IPM
Rapid Rate Y Axis: 196 IPM
Rapid Rate Z Axis: 196 IPM
Max Pallet Load: 882 LBS
Spindle Speed: 12,000 RPM
Spindle Motor: 25 HP
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Tool Diameter 2.7", 5.5"
Tool Length 17.7"
Tool Weight 26.4 LBS.
Tool Change Time 2.5 SECOND
Pallet Size: 15.7" x 15.7"
Dimensions: 107" x 166" x 100"
Weight: 18,700 LBS
Batteries were replaced with new on 7/27/2024 at Mori Seiki tech suggestion. Video was submitted on 10/7/2024 by owner. Unit is under power; available for inspection and test.
Buyer responsible for equipment loading expenses.
Buyer responsible for freight logistics and expenses.
Options:
MSX-8531V
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
Pallet Pool/FMS
Partial 4th Axis: 1 Degree Increments Thru 360°
CoolJet Systems High Pressure Thru Spindle Coolant
Coolant System Tank and Pumps
Showa Way Lube System
50 Holders
4 Pallets
3 Tombstones
Technic Dovetail Clamp Assemblies: (3) Long: 24″ Low Profile Universal Dovetail Clamp Assembly (4) Short: 12″ Universal Dovetail Clamp Assembly
Probing System - Spindle Part Probe, Tool Touch Up Probe, Renishaw OMI-2 Optical Receiver & Interface
Chip Conveyor
Probe
Coolant Thru Spindle
360 Deg. Indexing Table
Pallet Pool/FMS
Partial 4th Axis: 1 Degree Increments Thru 360°
CoolJet Systems High Pressure Thru Spindle Coolant
Coolant System Tank and Pumps
Showa Way Lube System
50 Holders
4 Pallets
3 Tombstones
Technic Dovetail Clamp Assemblies: (3) Long: 24″ Low Profile Universal Dovetail Clamp Assembly (4) Short: 12″ Universal Dovetail Clamp Assembly
Probing System - Spindle Part Probe, Tool Touch Up Probe, Renishaw OMI-2 Optical Receiver & Interface
Seller:
JerrS494
Location:
OR
