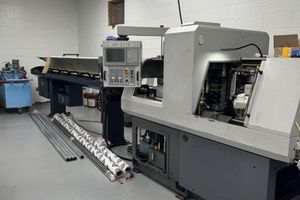

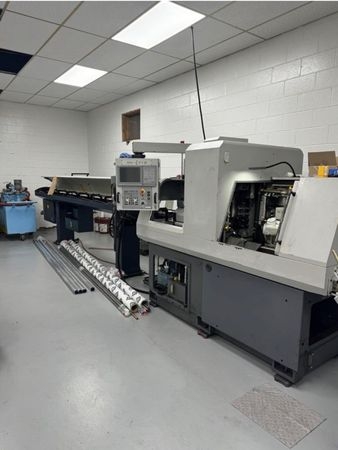

2014 NOMURA NN25

Specifications:
Swiss-Type CNC Lathe (Guide Bushing, Non-Turret Configuration)
Max Turning Diameter: 25mm (0.98”)
Max Turning Length: 200mm (7.87”)
Main Spindle Speed: 8,000 RPM
Live Tool Speed: 6,000 RPM
Main Spindle Through Hole: 27mm (1.06”)
Control: Mitsubishi Meldas 65S (10.4” LCD)
C-Axis Indexing: 0.001°

Tooling Capacity:
OD Tools: 16mm x 5
ID Tools: ER16 x 3 + ER20 x 1
Live Tools: ER20 / ER16 positions
Back Tooling + Sub Spindle Capability

Axis Travels / Feed Rates:
X/Z/Y Axes with rapid feed up to 20 m/min
Precision indexing and high-speed production capability

Included Equipment:
LNS Alpha ST320 S2 Bar Feeder (2013)
Parts Catcher & Exit Conveyor
Auto Lubrication System
Live Tool Unit
Back Tool Unit A
ID Attachment

Power Requirement: 15 KVA

Bar Capacity: 25 mm (0.98”)
Spindle Speed: 8,000 RPM
Spindle Motor: 2.2 kW / 3.7 kW (Main Spindle)
X Axis Travel: 100 mm
Z Axis Travel: 200 mm
Rapid Rate Z Axis: 20 m/min
Turret Tools: Gang Tooling + Live Tool Positions (No Turret)
Rapid Rate X Axis: 15-20 m/min
Max Turning Dia: 25 mm (.98")
Max Turning Length: 200 mm (7.87")

Dimensions: 89.76” x 49.49” x 71.85”
Weight: 6,504 lbs

Mitsubishi Meldas 65S Control
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Mitsubishi Meldas 65S Control
Guide Bushing Type
8,000 RPM Main Spindle
LNS Alpha ST320 S2 Bar Feeder (2013)
