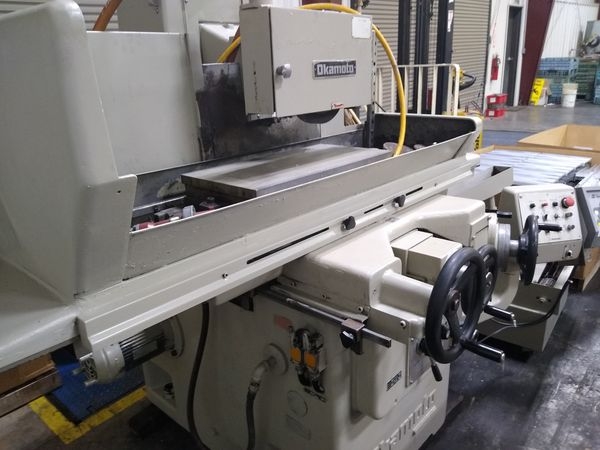

Used OKAMOTO ACC124N Grinding
Pre-owned OKAMOTO ACC124N 1990 Grinding. This Grinding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in South Carolina. This OKAMOTO Grinding is available for a limited time. Get a quote today on this ACC124N before it's gone.
Specs:
Grinding Wheel:
- Width: 1.5"
- Diameter - Maximum: 14"
Chuck Size: 12" x 24"
Height (under 14" Wheel w/o Chuck): 12.7"
Spindle Drive: 5 HP
Cross Feed Travel - Maximum: 13.4"
Longitudinal:
- Travel - Maximum: 29.5"
- Feed Rate - Automatic: 1 - 100 FPM
Wheelhead Downfeed - Automatic: 0.0001" - 0.0015" per Stroke
Table Capacity - Including Chuck: 930 Lbs.
Dimensions: 101" x 75" x 75"
Weight: 5,000
- Width: 1.5"
- Diameter - Maximum: 14"
Chuck Size: 12" x 24"
Height (under 14" Wheel w/o Chuck): 12.7"
Spindle Drive: 5 HP
Cross Feed Travel - Maximum: 13.4"
Longitudinal:
- Travel - Maximum: 29.5"
- Feed Rate - Automatic: 1 - 100 FPM
Wheelhead Downfeed - Automatic: 0.0001" - 0.0015" per Stroke
Table Capacity - Including Chuck: 930 Lbs.
Dimensions: 101" x 75" x 75"
Weight: 5,000
Owner:
Darrell (Machine Shop in SC)
