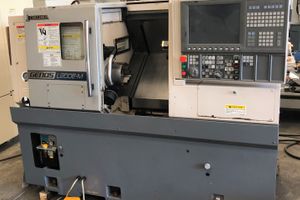

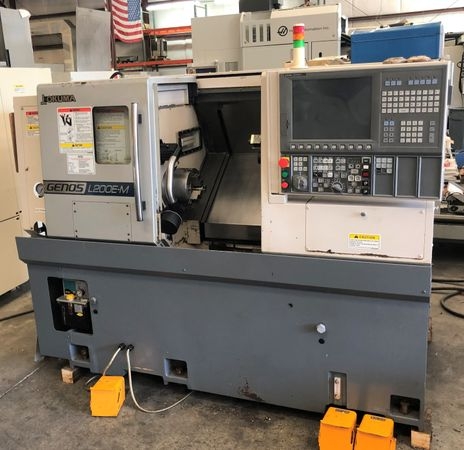

Used OKUMA GENOS L200E-M CNC Lathe
Specifications:
Bar Capacity: 1.8"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.6"
Z Axis Travel: 15.75"
Rapid Rate Z Axis: 1,172 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 984 IPM
Max Turning Dia: 7.9"
Max Turning Length: 14.96"
Max Swing: 17.72"
3,000 RPM (Live Tooling)
.001 C Axis
Box Way Guides
USP Ports
Ethernet
Dimensions: 82" x 61" x 62"
Weight: 8,320 LBS
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 15 HP
X Axis Travel: 6.6"
Z Axis Travel: 15.75"
Rapid Rate Z Axis: 1,172 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 984 IPM
Max Turning Dia: 7.9"
Max Turning Length: 14.96"
Max Swing: 17.72"
3,000 RPM (Live Tooling)
.001 C Axis
Box Way Guides
USP Ports
Ethernet
Dimensions: 82" x 61" x 62"
Weight: 8,320 LBS
Equipped With:
OSP-P200L-R
Tool Presetter
Tailstock
Live Tooling
Tool Presetter
Tailstock
Live Tooling
