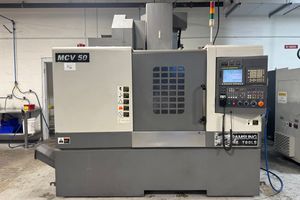

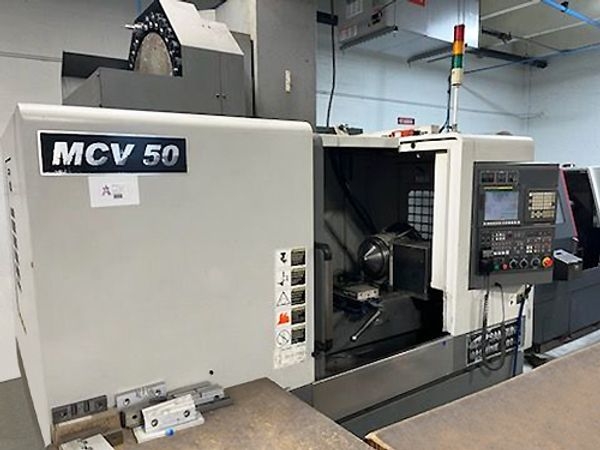

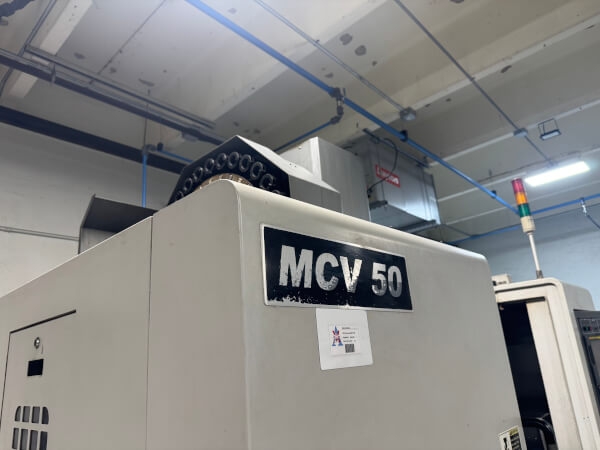

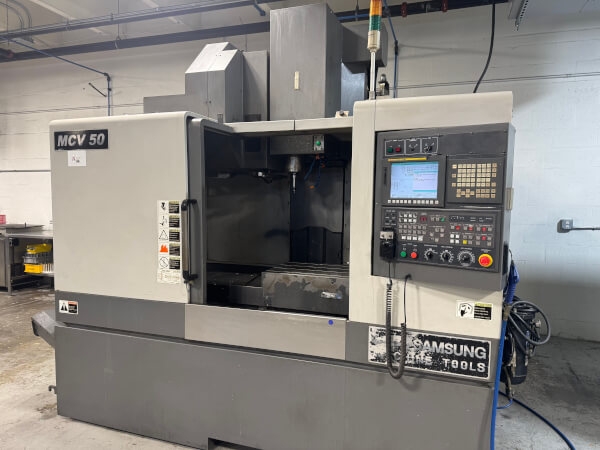

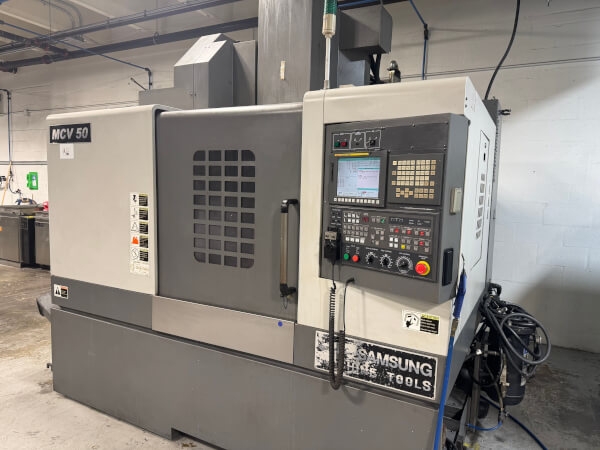

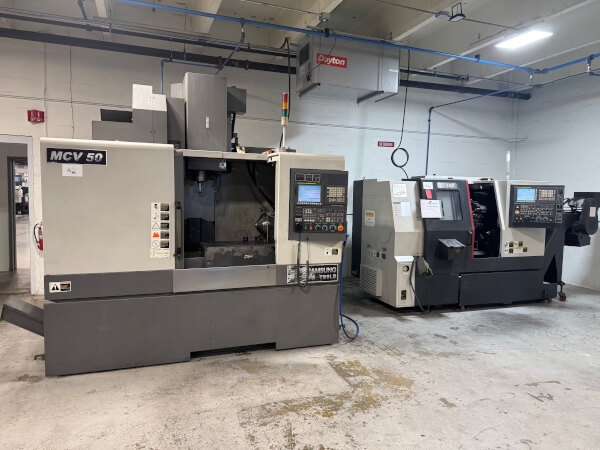

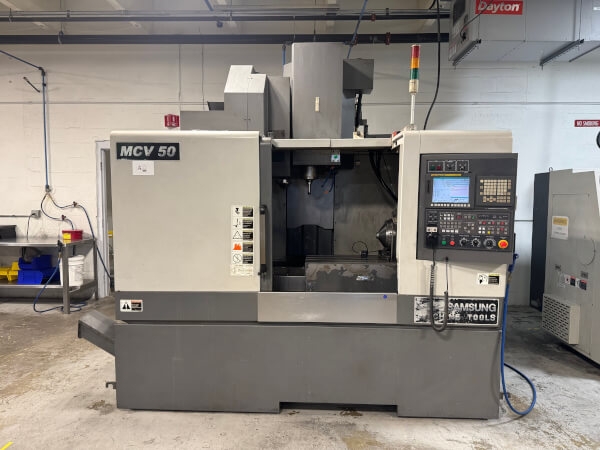

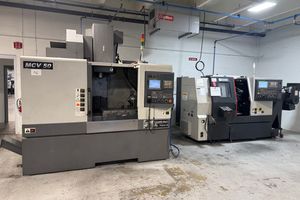

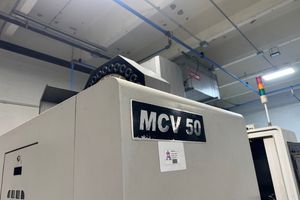

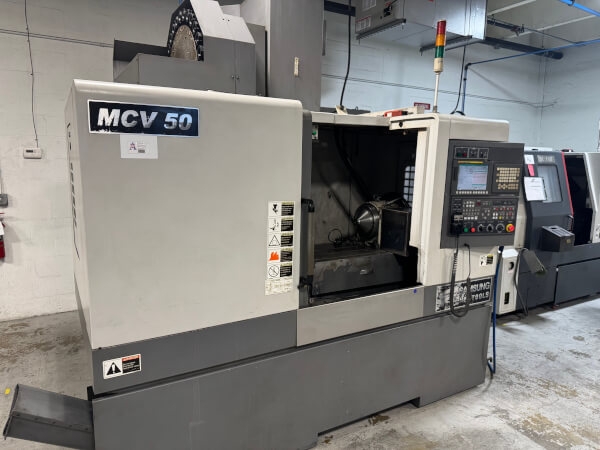

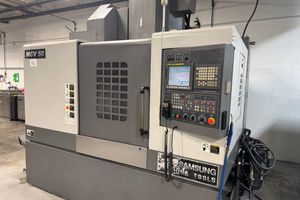

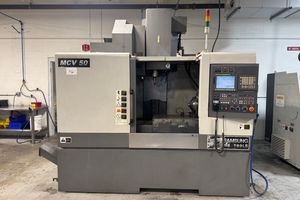

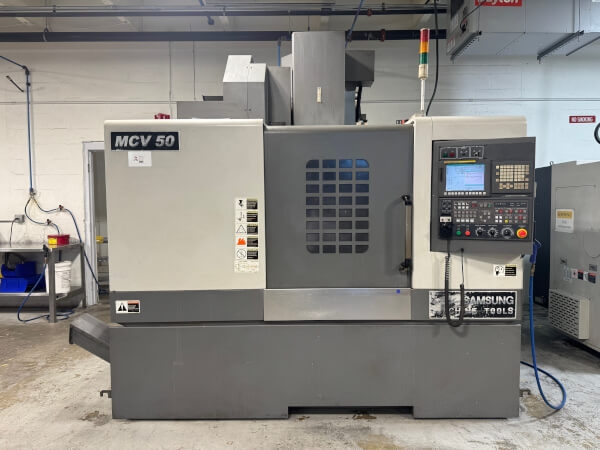

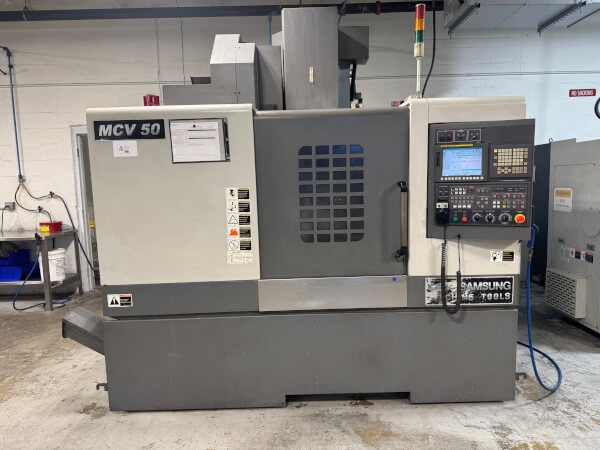

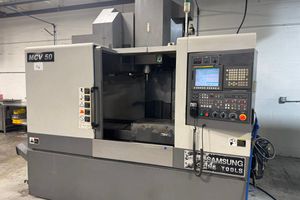

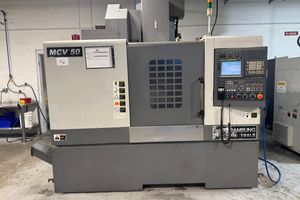

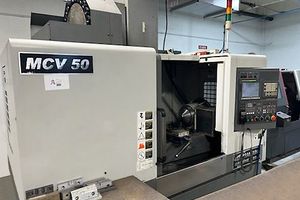

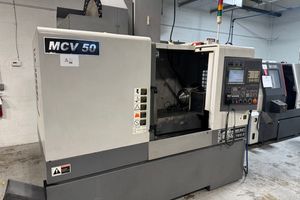

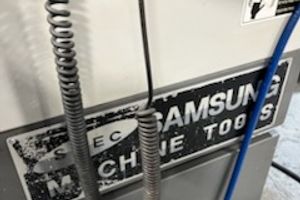

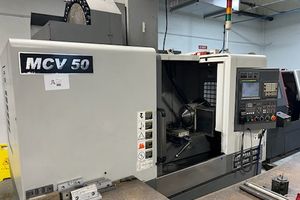

2011 SMEC Samsung MCV-50 CNC Mill – Only 5,660 Hours
This 2011 SMEC Samsung MCV-50 vertical machining center comes from the original owner and shows exceptionally low usage, logging just 5,660 spindle hours. The machine...Read More
Rigging:
$1,800
Specs:
X Axis Travel: 41.33"
Y Axis Travel: 20.47"
Z Axis Travel: 20.47"
Spindle Motor: 20 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: Side Mount 30 ATC
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,181 IPM
Table Size: 36.22" x 19.69"
Dimensions: 102" x 87" x 100"
Weight: 13,800 LBS
Max Table Load: 1,322 LBS
Video:

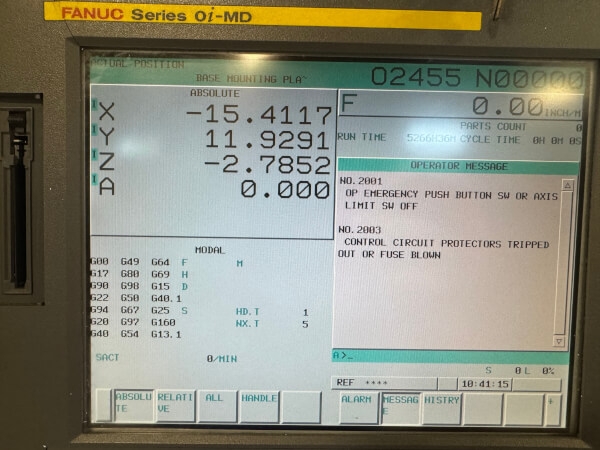

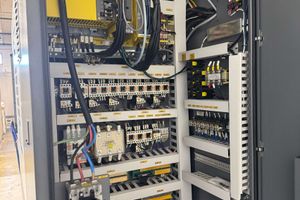

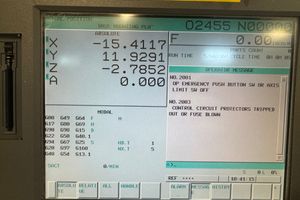

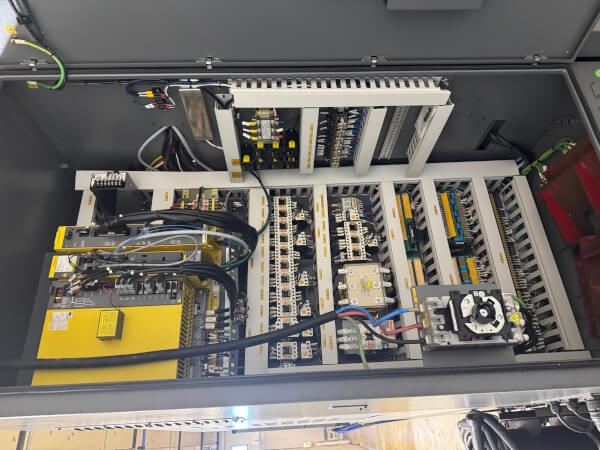

This machine has a bad fuse andnot able to operate for video.
Operator states machine is in good operation
Fix should be simple.

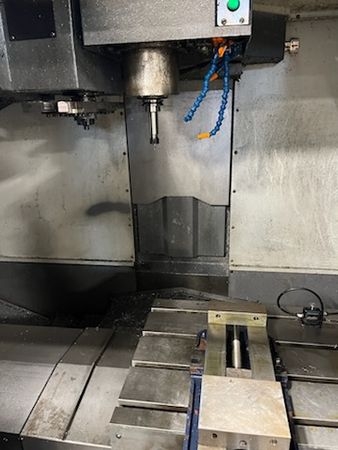

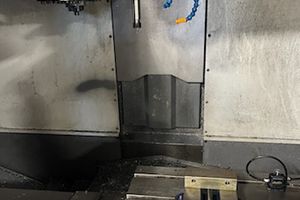

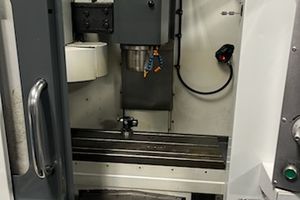

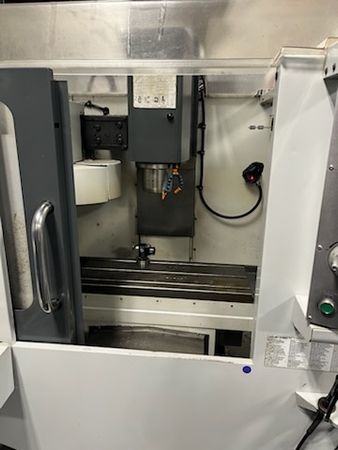

Table, covers need to be cleaned
Original owner
Very low usage over last 7-8 years
HOURS:
Cycle Time 5,266
Over all the machine is in good condition, needs to be cleaned and detailed. Coming out of Medical facility in South Florida going to high end swiss machines and fully automated cleaning station.
Y Axis Travel: 20.47"
Z Axis Travel: 20.47"
Spindle Motor: 20 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: Side Mount 30 ATC
Rapid Rate X Axis: 1,417 IPM
Rapid Rate Y Axis: 1,417 IPM
Rapid Rate Z Axis: 1,181 IPM
Table Size: 36.22" x 19.69"
Dimensions: 102" x 87" x 100"
Weight: 13,800 LBS
Max Table Load: 1,322 LBS
Video:
This machine has a bad fuse andnot able to operate for video.
Operator states machine is in good operation
Fix should be simple.
Table, covers need to be cleaned
Original owner
Very low usage over last 7-8 years
HOURS:
Cycle Time 5,266
Over all the machine is in good condition, needs to be cleaned and detailed. Coming out of Medical facility in South Florida going to high end swiss machines and fully automated cleaning station.
Options:

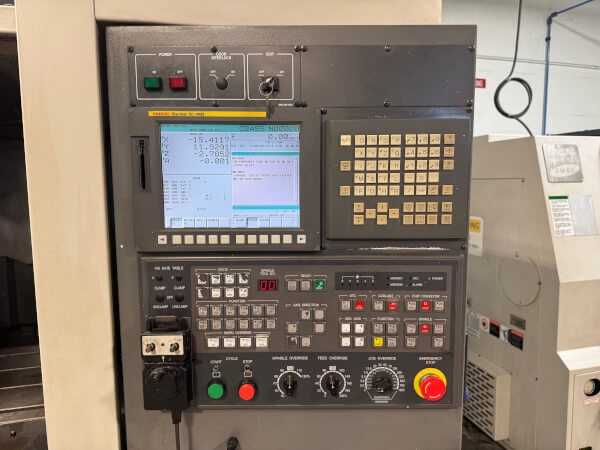

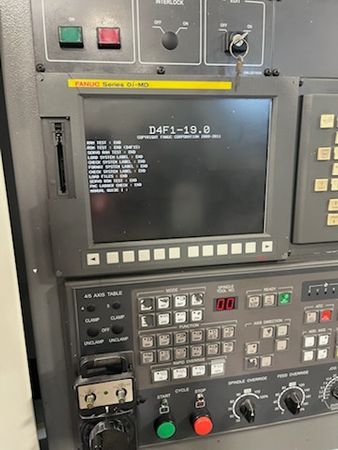

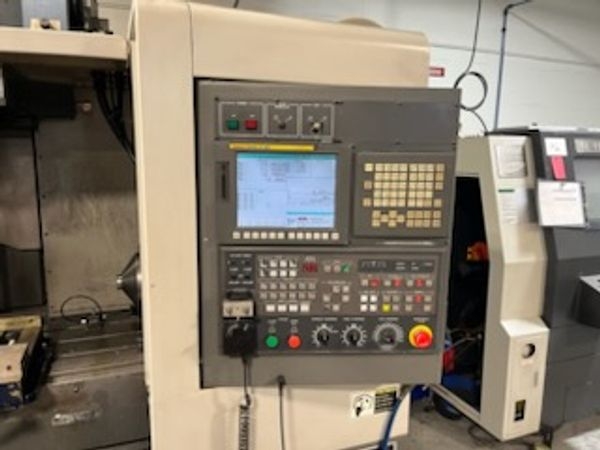

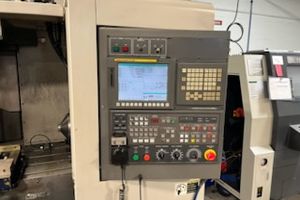

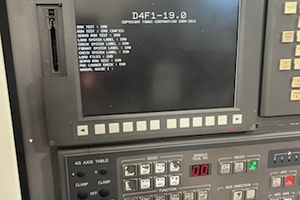

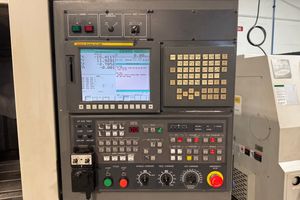

Fanuc Oi-TF

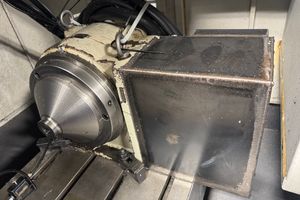

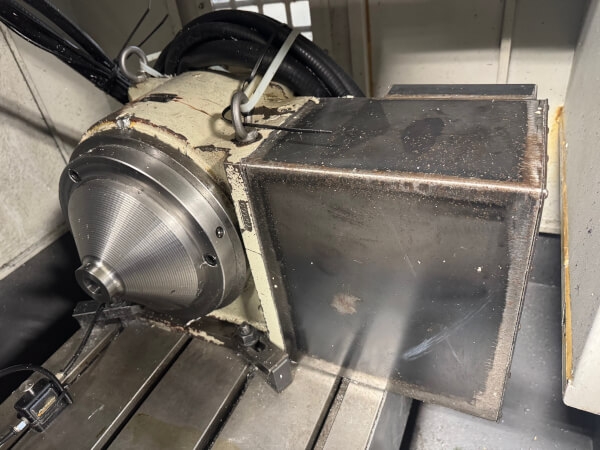

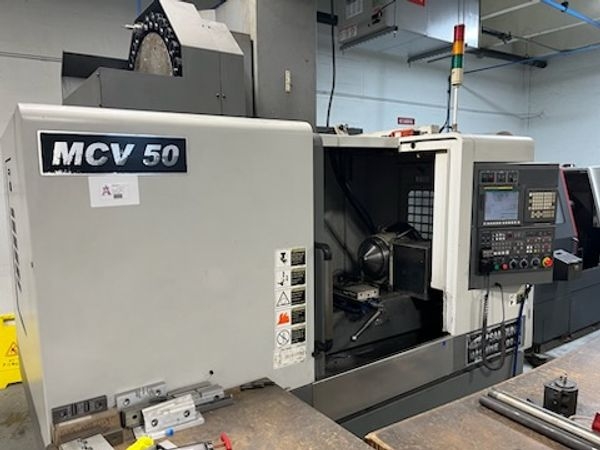

4th Axis Rotary Table
Chip Auger
4th Axis Rotary Table
Chip Auger
Seller:
JayM703
Location:
FL
