Machine Overview

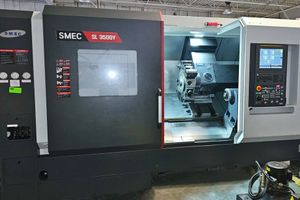

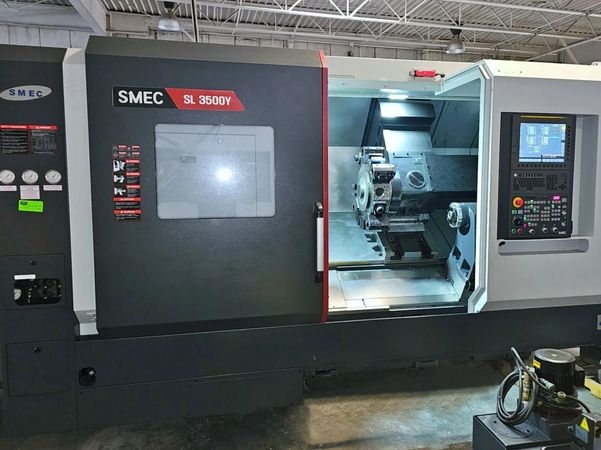

This 2023 SMEC SL45XY3000BB offers advanced features for a range of machining tasks. Equipped with a Tool Presetter, Y-Axis, and 5-Axis capability, this machine is tailored for complex projects. It's designed to handle various intricate operations with ease.
Key specifications include a swing over bed of 850.14 mm and a max cutting diameter of 430.02 mm, supporting detailed cutting work. The cutting length extends to 795.02 mm, while the X-axis travel reaches 280.16 mm. Additionally, the Y-axis travel is 5.12 inches (+/- 2.56 inches), and Z-axis travel measures 865.12 mm.
The machine is fitted with a 304.8 mm chuck, featuring a bar capacity of 103.12 mm. The spindle bore measures 115.06 mm, and the spindle nose is A2-11. The integrated spindle motor provides 18.6 kW of power, reaching speeds up to 2,500 RPM. The turret can accommodate 12 stations with 24 positions, using the BMT65 type for operations.
Live milling is supported, operating at speeds up to 4,500 RPM. The FANUC 0i-TF PLUS CONTROL system enhances performance with precision controls and connectivity through Ethernet and USB ports. The machine includes a 12-inch, 3-jaw Samchully (MH-212) hydraulic chuck and a 4-inch bar capacity for flexible usage.
The additional options such as a tailstock, chip conveyor, and tool presetter improve workflow and efficiency. Equipped with box ways, rigid tapping capabilities, and a 12 station/24 position BMT65 turret, it suits a variety of machining needs. Also provided are two straight live tool holders and one right angle live tool holder, further increasing its utility.
As of February 2026, the machine has registered a run time of only 46 hours, indicating limited use. Its condition suggests it’s almost new. The full replacement cost, with these specifications, stands at $225,000. The unit is currently available in-plant, under power, and can be inspected and purchased immediately.
