Machine Overview
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 29.5 HP
X Axis Travel: 7.1"
Z Axis Travel: 24.4"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 3x12 Station
Rapid Rate X Axis: 1,181 IPM
Spindle 2 RPM 7000 RPM
Spindle Nose 110mm
Spindle Bore 1.65
Chuck Diameter 5.5
Performance 29.5 hp
Torque 94.4 ft/lb
Number of Tool Stations 3 X 12
Driven Tool Stations All
Tool Holder BMT45 (opt VDI25)
Max Speed Driven Toola 8000 RPM
Performance 5.76 hp
Torque 10 ft/lb
Weight: 17,500 LBS
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Mist Collector
6' Iemca Master 880 Verso Bar Feeder

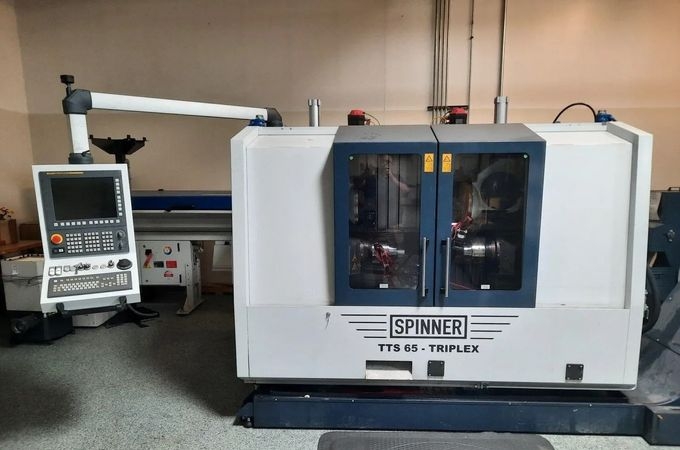

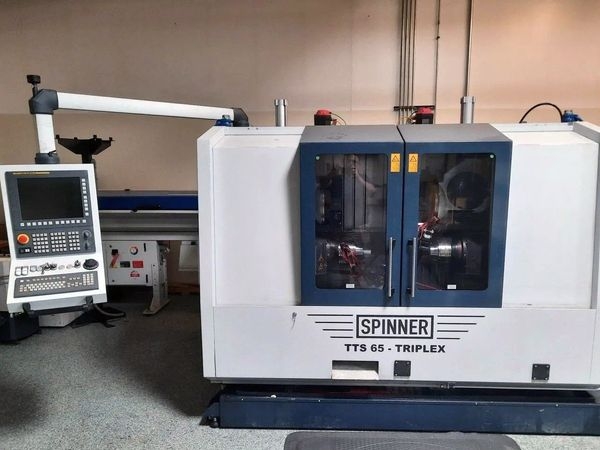

Pre-owned SPINNER TTS65 2022 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in New York. This SPINNER CNC Lathe is available for a limited time. Get a quote today on this TTS65 before it's gone.
