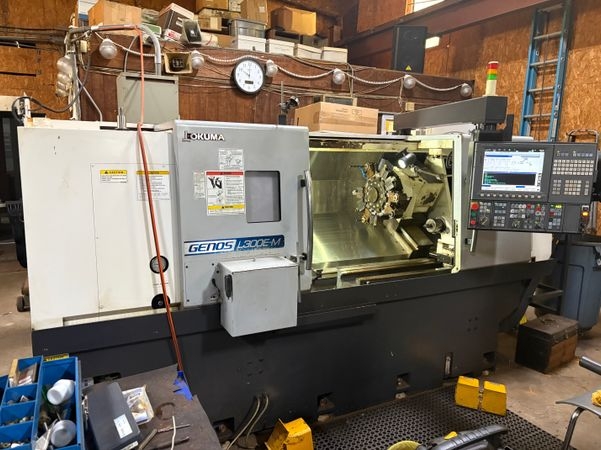

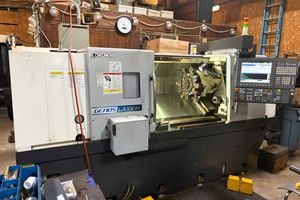

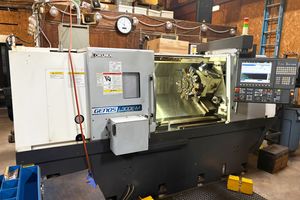

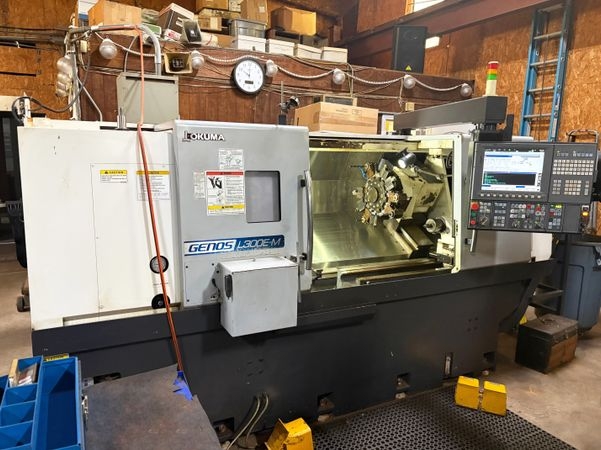

2014 TATUNG-OKUMA L300E-M

Bar Capacity: 2.95" (75 mm) (or ~2.5" to 2.75" depending on exact chuck/drawtube configuration)
Chuck Size: 10"
Spindle Speed: 20 – 3,000 RPM
Spindle Motor: 19.4 HP (Main AC Spindle) / 9.1 HP (Milling Spindle)
X Axis Travel: 9.25"
Z Axis Travel: 45.03" (varies by bed length variant, standard L300 base models often list ~17.7" to 41.73")
Rapid Rate X Axis: 984 IPM (traverse rate)
Rapid Rate Z Axis: 984 IPM (traverse rate)
Turret Tools: 12 Station
Max Turning Dia: 11.18" – 11.81"
Max Turning Length: 17.7" – 41.73" (depending on bed configuration)
Max Swing: 20.47" (over slant bed)
Dimensions: Approx. 78" x 158" (Height: 85") — larger MY/MW configurations measure roughly 131" x 95" x 87"
Weight: Approx. 9,000 lbs to 13,600 lbs (depending on added options like sub-spindle or Y-axis)

Chip Conveyor
Tool Presetter
Tailstock
Live Tooling
