Machine Overview

Specs:
X Axis Travel: 63"
Y Axis Travel: 55"
Z Axis Travel: 45"
Spindle Speed: 6,000 RPM
Spindle Taper: 50 CT
Spindle Motor: 50 HP
Rapid Rate Y Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Rapid Rate Z Axis: 944 IPM
Tool Changer: 120 ATC
Max Pallet Load: 6600 LBS
Pallet Size: 41.3" x 41.3"
Dimensions: 215" x 350" x 161"
Weight: 66,200 LBS
Options:
FANUC 31iMB with Touchscreen
Chip Conveyor
Probe
Coolant Thru Spindle
360,000 Full 4th
Description:

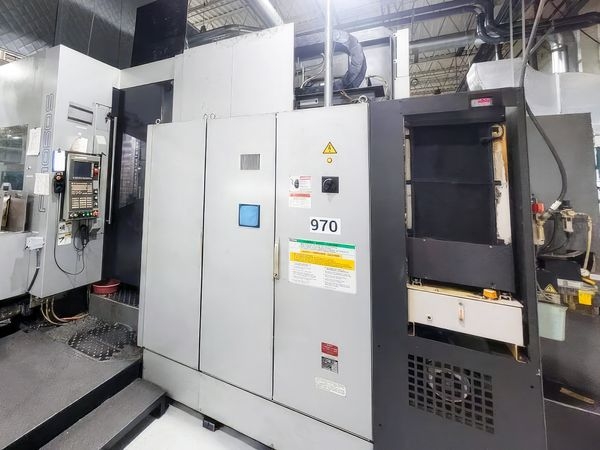

This 2008 TOYODA FA1050S is a noteworthy piece of machinery equipped with several features meticulously designed to meet your specific needs. Noteworthy options that accompany this machine include a chip conveyor, a probe, and the innovative coolant through spindle option.

In terms of specifications, it possesses a CNC control, with the type of CNC Control being a Fanuc 31i-A. It operates on 4-axis, which proves handy for complex operations. It grants a vast pallet size of 41.3 x 41.3 inches (both in width and length), rendering it versatile for various tasks.

It provides a generous X, Y, Z capacity of 63, 55.10, and 45 inches respectively, ensuring it can accommodate a diverse range of operations. Additionally, the pallet capacity stands at an impressive 6600 pounds, and the machine comes with pallet indexing (B-Axis) full 4th - .001.

Furthermore, its rapid feed-rate on the X, Y and Z axis stands at 944 each, which aids in its smooth and fast operation. It has a spindle speed of 6000 and a spindle taper of CAT 50, underpinning its practical and functional design. This machine also features a coolant through the spindle, enhancing its functionality.

The main motor operates at 50 HP, thereby offering reliable service for your operations. The machine additionally comes with a capacity to change 120 tools, further easing its usage. It has clocked 19523 hours, signifying its resilience and longevity.

The machine's compact dimensions of 215 x 320 x161 HT means it won't take up too much space. Despite its weight of 66139 pounds, it is designed to deliver superior performance under various conditions. This machine comes complete with the advanced Fanuc 31i - A Control, a hand pendant, a 120 station automatic tool changer, high-pressure coolant, coolant through the spindle, a Renishaw Probe, chip conveyor, a coolant system, and a mist collector.

The machine also comes with a manual to guide you step by step through its usage. Offers for this 2008 TOYODA FA1050S are welcome, and it's priced to sell fast due to its array of capabilities and features, making it a well-rounded, versatile, and useful piece of machinery not to be overlooked.
