Machine Overview

Specs:
Bar Capacity: 0.79"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Max Turning Length: 8.26"
Max. Main Spindle Drilling Diameter: 0.39"
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 0.79"
Max. Back Spindle Drilling Diameter: 0.31"
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: 0.275"/ER11 and 0.393"/ER16
Max. Cross Tapping Diameter M5 x 0.8"
Max. Tool Spindle Slotting Cutter Diameter: 1.18"
Max. Back Live Drilling Diameter: 0.236"
Max. Back Live Tapping Diameter: M5
Main Spindle Speed 200 to 10,000 min-1
Back Spindle Speed 200 to 12,000 min-1
Rotary Guide Bushing Speed 200 to 10,000 min-1: Direct-drive rotary guide bushing
Live Tool Speed 200 to 8,000 min-1
Total Tool Storage Capacity 21
Tool Size .5 in. x .5 in. square, 20 mm round
Rapid Traverse Rate 32 m/min (105 ft/min)
[(X1/Y1: 24 m/min (78.74 ft/min)] Y2: 15m/min (49 ft/min)
Controlled Axes (linear axes) 5-Axis
Main Spindle 3/5 Hp (2.2/3.7 kW)
Back Spindle 2/3 Hp (1.5/2.2kW)
Axis 0.7 Hp (0.5 kW) - X1,X2,Y1,Z1,Z2
Cross Dill 1 Hp (0.75 kW)
Coolant Pump 0.4 Hp (0.25 kW)
Lubricating Oil Pump 3 W
Power Source Requirement 12 kVA
Compressed Air Requirement 0.4 Mpa or above
Air Discharge Rate 50 NL/min
Coolant Tank Capacity 180 L
Dimensions: 65.16" x 44.29" x 66.93"
Weight: 4,410 LBS

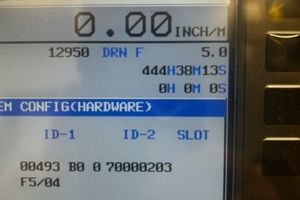

Very low hours, see attached photo.
Options:
Bar Feeder
Parts Catcher

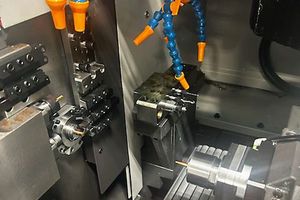

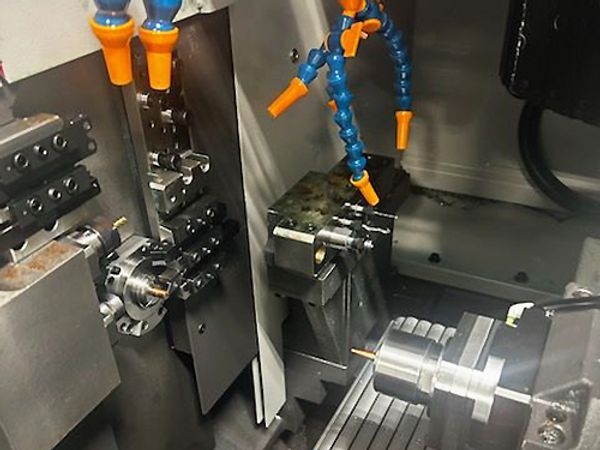

Live Tooling
Sub Spindle
5 Axis

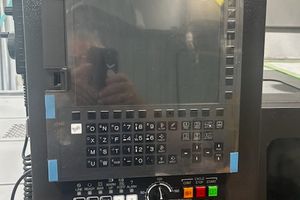

Fanuc CNC Control

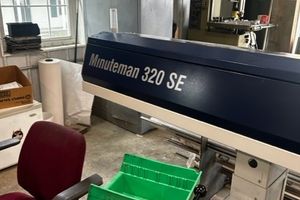

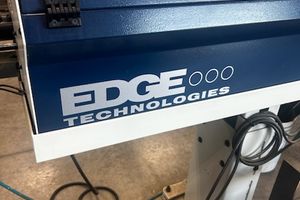

Edge minuteman 320 SE 12' barfeeder
9 guide bushings
25 TF-25 Collets
Two different size push rods for bar feeder
Tool holders and inserts (Drawer Full)
Very low hours, see attached photo.
Description:

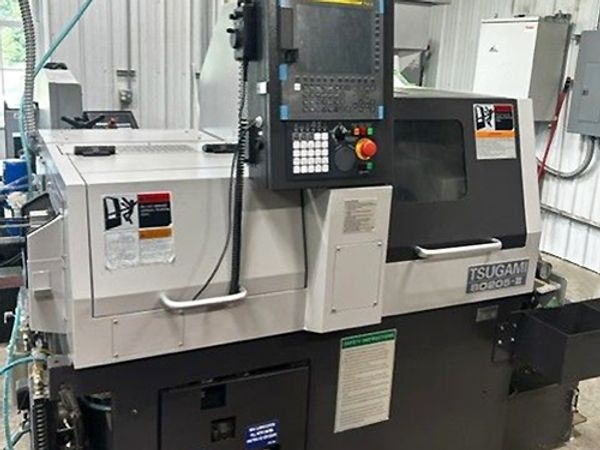

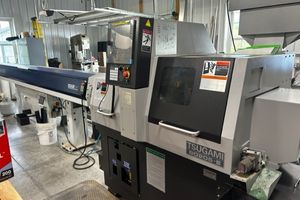

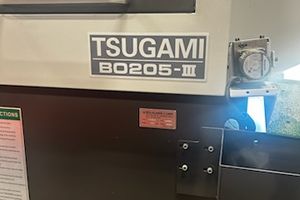

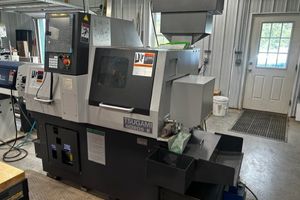

This 2022 TSUGAMI B0205 III CNC Lathe is a great choice for those in need of a top-tier machining tool.
It comes equipped with several valuable options and upgrades that enhance its capability and versatility.

The lathe includes a Bar Feeder and Parts Catcher, making it ideal for handling various tasks with ease.
Live Tooling and a Sub Spindle add to its functionality, allowing for more complex operations.
With 5 Axis capability, this machine can tackle intricate jobs effortlessly. The Fanuc CNC Control ensures smooth operation and precision throughout.

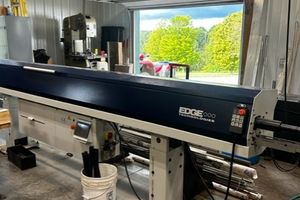

Additional features include the Edge Minuteman 320 SE 12' barfeeder, which aids in continuous operation.
There are also 9 guide bushings and 25 TF-25 collets included, offering a range of options for different setups.
Two different size push rods complement the bar feeder, providing flexibility in material handling.
A drawer full of tool holders and inserts is also available, adding value to this package.

With very low hours of operation, this CNC lathe is practically like new, as shown in the attached photo.
The condition and included accessories make it a remarkable find for anyone looking to expand their machining capabilities.
