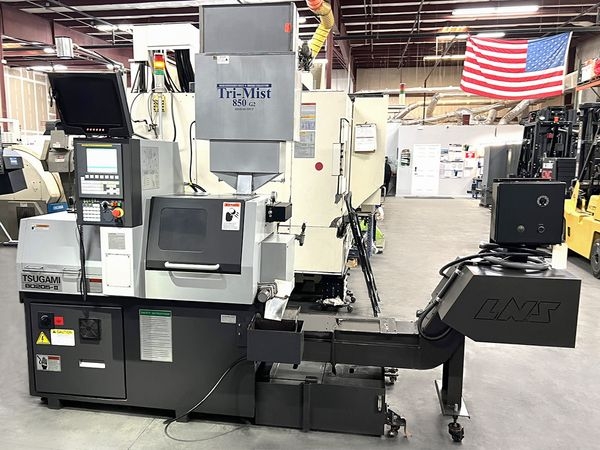

This 2015 Tsugami B0205II CNC Lathe is an excellent choice for any shop looking to increase their production capabilities. With a Fanuc Oi-TD CNC control, this 5 axis swiss lathe offers reliable and precise machining with mi...Read More
Notify Me:
Specs:
Bar Capacity: 0.79"
Spindle Speed: 10,000 RPM
Spindle Motor: 3 HP
Rapid Rate Z Axis: 1,258 IPM
Rapid Rate X Axis: 1,258 IPM
Max Turning Length: 6.69"
SUB SPINDLE
12,000 RPM
3HP
TOOLING
13 Turning Tools
4 Rotary Tools
5,000 RPM Live tooling
Tool Shank .5 Square .5 Round
Y Axis
BAR FEEDER:
FMB Minimag 20
3-23mm bar capacity
loading capacity: 200mm
Feed Speed 300mm
Return Speed 600mm
Dimensions: 65" x 44" x 66"
Weight: 4,409 LBS
Spindle Speed: 10,000 RPM
Spindle Motor: 3 HP
Rapid Rate Z Axis: 1,258 IPM
Rapid Rate X Axis: 1,258 IPM
Max Turning Length: 6.69"
SUB SPINDLE
12,000 RPM
3HP
TOOLING
13 Turning Tools
4 Rotary Tools
5,000 RPM Live tooling
Tool Shank .5 Square .5 Round
Y Axis
BAR FEEDER:
FMB Minimag 20
3-23mm bar capacity
loading capacity: 200mm
Feed Speed 300mm
Return Speed 600mm
Dimensions: 65" x 44" x 66"
Weight: 4,409 LBS
Options:
Fanuc Oi-TD
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
FMB Bar Feeder
Tri Mist collector
MP 1,000 PSI
Cutting Time 2,513 (Low Hours)
$268,000 New Replacement Value for Tsugami B205II with similar options
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
FMB Bar Feeder
Tri Mist collector
MP 1,000 PSI
Cutting Time 2,513 (Low Hours)
$268,000 New Replacement Value for Tsugami B205II with similar options
