Machine Overview

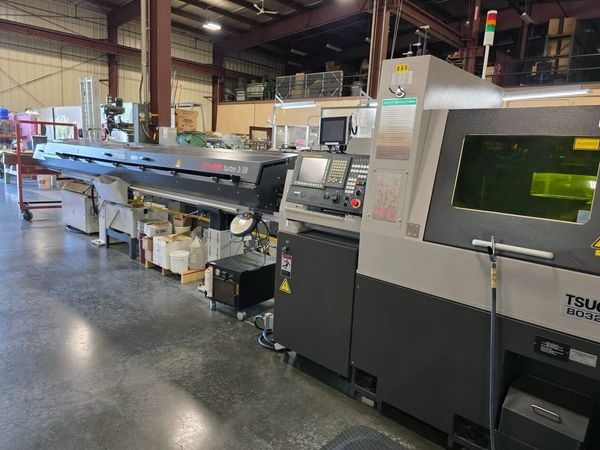

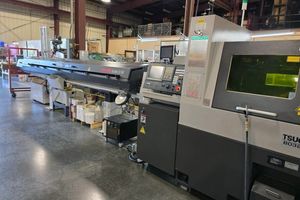

This 2019 TSUGAMI B0325B-II is a versatile CNC Swiss-type Automatic Lathe, prepared to enhance your manufacturing capabilities. Equipped to handle a maximum machining diameter of 1.25 inches and a length of up to 12.59 inches, this machine is designed for precision and adaptability to various manufacturing needs.
The machine's main spindle reaches speeds ranging from 200 to 8,000 RPM, ensuring flexibility for different materials and finishes. For rotary tool tasks, the spindle operates between 200 and 6,000 RPM, offering additional versatility. With a total of 31 tools, the setup accommodates a wide array of cutting, drilling, and tapping operations.
The TSUGAMI B0325B-II can facilitate drilling with a maximum diameter of 0.39 inches and supports tapping up to M10 size. The back spindle accommodates a chucking bar stock diameter of 1.26 inches, alongside a drilling diameter of 0.39 inches, and can handle tapping up to M8 size. Moreover, its tool spindle supports a slotting cutter with a diameter of 1.77 inches, expanding the range of machining possibilities.
For chucker mode applications, the lathe provides a stroke of 2.75 inches, complemented by the back spindle's front ejection capacity of up to 3.9 inches, facilitating efficient part handling. The back spindle matches the main spindle in speed range, between 200 and 8,000 RPM, ensuring seamless operations between spindles.
In terms of construction, this machine boasts a spindle center height of 39.37 inches and weighs in at 7,500 lbs. This robust build ensures stable operations during intensive cycles. Rapid traverse rates reach 32 meters per minute, allowing for swift transitions between machining tasks, boosting productivity.
The machine features numerous tool posts to suit varying needs: eight gang tool posts for turning, four for live applications, seven front drilling, two deep-hole front drillings, and nine for back drilling. This array of mountable tools provides ample flexibility for customizing setups to fulfill specific project requirements.
Motor capacities include a 7.5 hp main spindle motor, ensuring adequate power for demanding tasks. The back spindle is driven by a 5 hp motor, while the rotary tools are supported by a 1.5 hp continuous motor. A 0.5 hp motor ensures effective coolant distribution during operations.
The 2019 TSUGAMI B0325B-II is built to cater to various production needs, providing a comprehensive solution for machining diverse components with precision and consistency.
