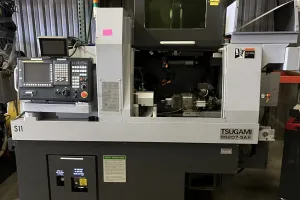

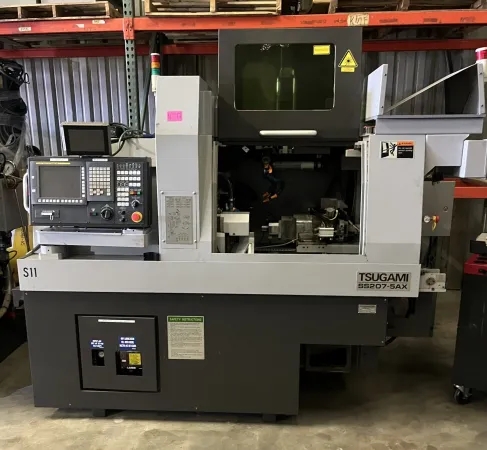

2015 TSUGAMI SS207 5AX

Maximum Machining Dia.: .787"
Maximum Machining Length: 8.26"/Chucking
Main Spindle Speed: 200~10,000
Rotary Tool Spindle Speed: 200~8,000
Back Spindle Max.: Dia. .787"
Back Spindle Front Ejection Maximum Length: 3.2"
Back Spindle Speed: 200~10,000
Rapid Traverse Rate: 32 M/min
Input Power: 6KVA
Center Height: 39.37"
Weight: 7,260 LBS

Motors
Main Spindle: 3/5 hp
Back Spindle: 2/3 hp
Rotary Tool: 1 hp
Coolant: 0.5 hp

B1 Axis Tool Spindle Position
Positioning Angle: 0° - 110°
Positioning method Servo controlled
Number of tool positions: 6 (3 main and 3 sub)
Rotary tool speed: 5,000 rpm
Main spindle tool collet: ER16
Sub spindle tool collet: ER11
Positioning angle: 0 - 110 degree

Laser: 250W Fiber
Cooling System Water Cooled
Laser Enclosure Classification Class 1
Max Cutting Speed: 19.685"/sec
Wavelength: 1070 +/- 10nm
Frequency: 2-20kHz
Pulse Width: 0-CW
Power: 25-250w
Nozzle Standoff Adjustment NC controlled
Variable Gas Pressure: 5 to 350 psi
# of Gas Connections: 2
Through Work Piece Coolant to 246 psi
Coolant as Fed From Front of Part to 1,000 psi
Tube Size Constraints
250W Fiber
Maximum Wall Thickness: 0.039"
Minimum OD: 0.080"
Maximum OD: 0.787"
Minimum OD: ID Ratio 3:1

Optic Specifications
Focal Length: (mm) f=100
Beam Reduction (Optional): .5/.7
Beam Expansion (optional): 1.4/2.0/2.8
Exchangeable protection glass: Y
Cutting Nozzle Diameter: 1mm to 3mm

Fanuc 31i-B5
5 Axis
Fanuc 31i-B5 CNC Control w/ 10.4" LCD
250 Watt SPI Fiber Laser System
Rigid Tapping
Simultaneous all axes control
AC servo axes control
Main spindle Collet Chuck unit (S&M TF25)
Back spindle Collet Chuck unit (S&M TF25)
Parts catcher with exit conveyor and basket (max part length = 3.15")
Cutting oil tank with coolant tank level detector (40 Gal. Capacity)
Sub spindle air blast
Integral motor driven guide bushing unit
Door interlock with switches
Main spindle C axis with brake
Sub spindle C axis with brake
Spindle Cooling for Main, Sub and Guide Bushing Motors
Air/Oil pressurized driven tool gearbox units
Air pressurized guide bushing unit
Centralized lubrication system w/oil level detector (0.21 Gal. Capacity)
Leveling bolts & pads
Hand tools (spanners, wrenches, etc.)
Up to 38 tool positions are possible
