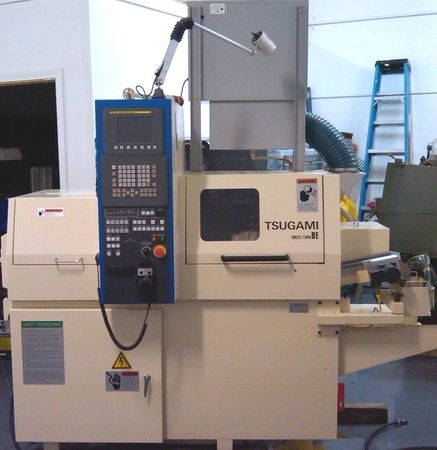

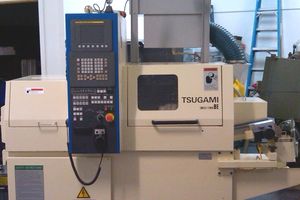

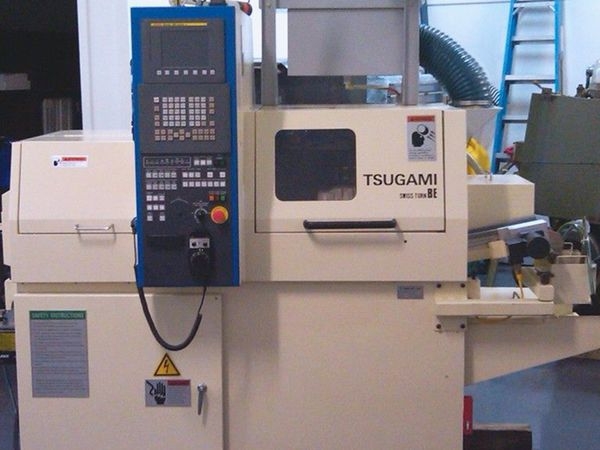

2007 TSUGAMI BE19

Can be Ran with or without Guide Bushing
20mm Bar Capacity
2200 hours of cutting time
21mm & 11mm guide channel sets
MP Systems 1000 psi high pressure coolant system w/ 4 outputs
Patrol light
Coolant thru sub spindle
Parts conveyor
Trimist Mist Collection Unit
BK micro drill breakage unit
Capable Tool Zone: with 5 OD, 3 cross rotary, 4 ID, and 8 back working tool positions.
Convertible Machine: Convert to chucker mode in minutes!
Y Axis Milling: Cross rotary tools for complex machining.
Abile Software: Building block design process with graphic prove out of programs.
Simultaneous Operations: 2 path Fanuc CNC.
Key Features Include:
Maximum Bar Capacity: BE19 - 20mm (.787")
Max. Workpiece Length: 170mm (6.70")
Main Spindle Speed: 12,000 rpm
Cross Rotary Tools: 5,000 rpm
Rapid Traverse Rate: 32m/min - 1260 ipm
Total Number of Tools: 20 Tools
Machine Weight: 2,200(4,490 lbs)
Machine Control: FANUC 31i-A

Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Iemca Smart 320 Magazine Type Loader
