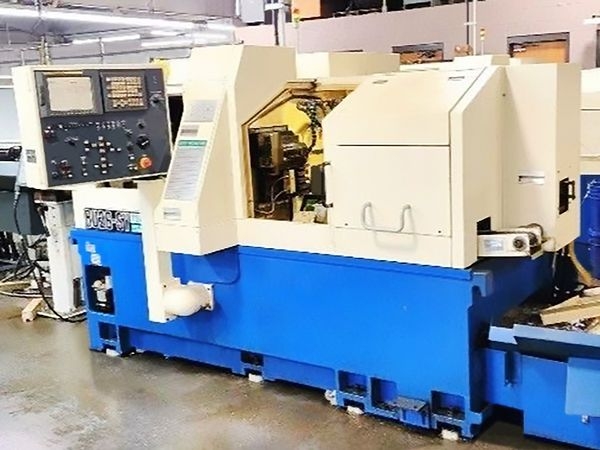

Used TSUGAMI BU26SY CNC Lathe
For sale is a TSUGAMI BU26SY CNC Lathe, manufactured in 2005. This machine is a top-of-the-line solution for your precision metalworking needs. Its cutting-edge technology and advanced features make it a great investment for any machinist who values front and back working. One of the key features of this machine is its dual-spindle setup, which allows for maximum efficiency and productivity. The two spindles can be used simultaneously to reduce idle time and increase throughput. Additionally, the machine has a gang-type tool post with live tooling functionality, which allows for complex and intricate cuts to be made with ease. The control system on this CNC Lathe is a Fanuc 18i-TB, which is an industry standard control system that is easy to use and navigate. The machine also has a high-speed loader that allows for rapid and precise loading and unloading of parts. The TSUGAMI BU26SY CNC Lathe is capable of turning parts with a diameter of up to 26mm and a length of up to 150mm. Its powerful and precise cutting capabilities make it a great fit for a wide range of industries, including aerospace, medical, and automotive. Moreover, the machine is also equipped with an intelligent thermal compensation system, which ensures that temperature fluctuations do not affect the quality of the parts produced. This machine has been well-maintained and operates at peak performance. It comes equipped with a chip conveyor and a coolant system, ensuring that clean-up are hassle-free. All in all, the TSUGAMI BU26SY CNC Lathe is a top-of-the-line solution for your metalworking needs. Its dual-spindle setup, advanced control system, and high-speed loader make it a strong asset. Contact us today to see it in action and experience its precision and reliability for yourself.
Spindle Speed: 6,000 RPM
Spindle Motor: 7.3 HP
Max Turning Length: 9.842"
# AXIS: 8
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING: Full C
SUB SPINDLE INDEXING: 5 degree
LIVE BACK WORKING TOOLS Yes
Sub-Spindle Bar Capacity: 1.00 "
Speed: 200 - 5000 RPM
Drive Motor: 7.3 hp
Index Increment (Degrees): 5° Indexing (C Optional)
STD. Number of Axes: 8
Axis/ Travel/ Traverse rate/ Feed rate
X1 (STD.) 1.378 Inch 472 IPM 236 IPM
Z1 (STD.) 9.842 Inch 944 IPM 236 IPM
C1 (STD.) 360.000 Deg.
Y1 (STD.) 9.448 472 IPM 236 IPM
X2 (STD.) 4.330 Inch 472 IPM 236 IPM
Z2 (STD.) 5.511 Inch 944 IPM 236 IPM
Y2 (STD.) 3.149 Inch 393 IPM 236 IPM
Z3 (OPT.) 11.220 Inch 944 IPM 236 IPM
Live Tool Speed: 5000 RPM
Live Tool Motor: (HP): 15.0
Type/ Gang-Slide/ Turret
-Max. number of tools
Turning 7 8
Rotary 2 4
Square 0.500 "
Round 0.750 " 1.000 "
Rotary 0.250 " 0.500 "
Horse power .7 1.9
Speed 8000 rpm 5400 rpm
There are a number of tools offered that allow for 2 - 4 tools on one holder
On-Center Mill Drill Standard with 'C' Axis
Off-Center Mill Drill Standard with 'Y' Axis
Floor layout: Length: 137 " x Width: 80 " x Height: 69 "
Full C Axis Control on Main Spindle
C Axis Indexing on Sub Spindle (5 Degree Resolution)
Chip Blaster J4BW1SS 5-Channel High Pressure Coolant System (M Code Controlled)
LNS Hydrobar Express 332 Bar Loader,
Collets and Guide Bushings Included
Side Discharge Chip Conveyor
Machine Leveling Pads
All Available Books & Manuals
