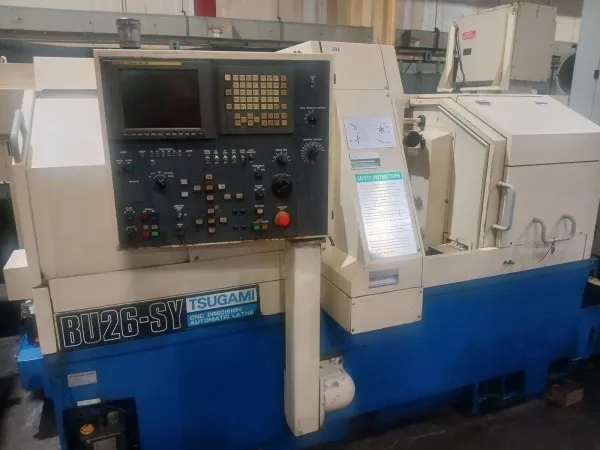

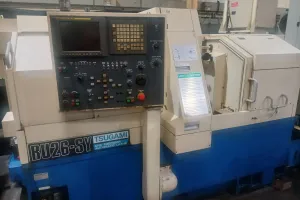

2006 TSUGAMI BU26SY

Bar Capacity: 1"
Spindle Speed: 200–5,000 RPM
Spindle Motor: 7.3 HP
Number of Axes: 8
Index Increment: 5° (C-Axis Optional)
X1 Axis Travel: 1.378"
Z1 Axis Travel: 9.842"
Y1 Axis Travel: 9.448"
X2 Axis Travel: 4.330"
Z2 Axis Travel: 5.511"
Y2 Axis Travel: 3.149"
Z3 Axis Travel: 11.220" (Optional)
C1 Axis Rotation: 360°
Rapid Rate X1 , Y1, Z1 Axis: 472 IPM
Rapid Rate X2, Y2, Z2 Axis: 472 IPM
Rapid Rate Z3 Axis: 944 IPM (Optional)
Feed Rate X1, Y1, Z1 Axis: 236 IPM
Feed Rate X2, Y2, Z2 Axis: 236 IPM
Feed Rate Z3 Axis: 236 IPM (Optional)
Live Tool Speed: 5,000 RPM
Live Tool Motor: 15 HP
Gang Slide Turning Tools: 7
Gang Slide Rotary Tools: 2
Turret Turning Tools: 8
Turret Rotary Tools: 4
Square Tool Size: 0.500"
Gang Slide Round Tool Size: 0.750"
Turret Round Tool Size: 1.000"
Gang Slide Rotary Tool Size: 0.250"
Turret Rotary Tool Size: 0.500"
Gang Slide Rotary Tool Motor: 0.7 HP
Turret Rotary Tool Motor: 1.9 HP
Gang Slide Rotary Tool Speed: 8,000 RPM
Turret Rotary Tool Speed: 5,400 RPM
On-Center Mill Drill: Standard with C-Axis
Off-Center Mill Drill: Standard with Y-Axis
Coolant/Chip Pan Dimensions: 80" x 62" x 23"
Coolant/Chip Pan Weight: 250 LBS
Floor Space: 137" x 80" x 69"
Dimensions: 133" x 83" x 101"
Weight: 12,100 LBS

Fanuc 18iTB2
Chip Conveyor
Bar Feeder
Live Tooling
Sub Spindle
Chip Blaster J4BW1SS 5-Channel High Pressure Coolant System (M Code Controlled)
LNS Hydrobar Express 332 Bar Loader
Collets and Guide Bushings Included
Side Discharge Chip Conveyor
Machine Leveling Pads
LNS Hydrobar Express 332 Bar Loader
C Axis Indexing on Sub Spindle
Full C Axis Control on Main Spindle
