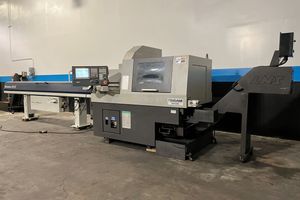

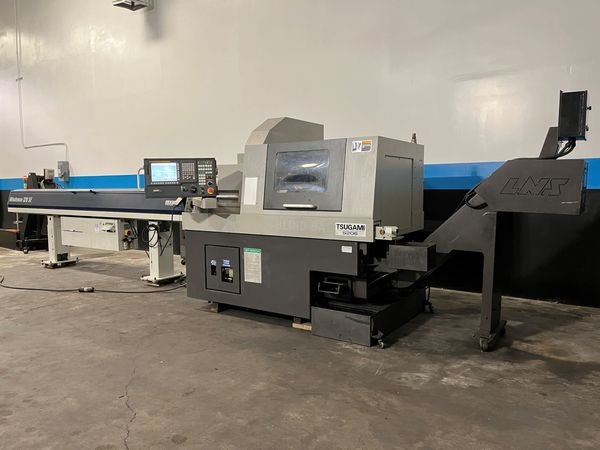

2014 TSUGAMI S206

Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79" (20 mm)
Main Spindle Speed: 12,000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 12,000 RPM
Back Spindle Motor: 2.2 kw
Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2
Cross Turn Stations: 8
Cross Drill Stations: 3
Main/Sub Drill Stations: 5
Sub Drilling Stations: 4
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Traverse: 944 IPM
Max Turning Diameter: 0.79?"
Max Turning Length: 9.843"
Max Turning Length with Gripping Unit: 8.26"
Max Bar Capacity: 0.79"
Max Tool Positions: 25
Max. Main Spindle Drilling Diameter: 0.39"
Max. Main Spindle Tapping Diameter: M8
Max. Back Spindle Chucking Diameter: 0.79"
Max. Back Spindle Drilling Diameter: 0.31?
Max. Back Spindle Tapping Diameter: M6
Max. Cross Drilling Diameter: 0.275/ER11 and 0.393" /ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18"
Max. Tool Spindle Drilling Diameter: 0.314"
Max. Back Tapping Diameter: M5
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 12.1 kva
Overall Dimensions: 83.07" X 47.24" X 74.21" without Bar Feeder
Weight: 7275 lbs. Approx.

Fanuc 32i Model B
Chip Conveyor
Bar Feeder
Parts Catcher
Y Axis
5 Axis
Edge Minuteman 320 SE Bar Feeder
Coolant Tank
