Hello!

Machine Overview

Specs:

Table Size 44.09 x 25.59
Table Capacity 2200 pounds
X-Axis Travel 40.15 inches
Y-Axis Travel 23.62 inches
Z-Axis Travel 23.62 inches
Spindle Speed 15000 RPM
Spindle Taper Big Plus CAT 40
Main Motor 30HP
Tool Changer Capacity 30
X-Axis Feedrate 394 ipm
Y-Axis Feedrate 394 ipm
Z-Axis Feedrate 394 ipm
X-Axis Rapid Traverse Rate 945 ipm
Y-Axis Rapid Traverse Rate 945 ipm
Z-Axis Rapid Traverse Rate 945 ipm
Coolant Thru Spindle no
Max Distance Spindle To Table Top 27.559 inches
Machine Hours - Cut 5112
Weight 15400 pounds
YCM Fanuc MXP-200FB CNC Fanuc Data Server - 2GB Remote Handwheel Coolant System Coolant at the spindle 30 Station ATC Chip Conveyor with dual augers Data Port Service PortRS-232 Port Digital Card Slot on Control USB Port on Control
Options:
Fanuc Enhanced MXP-200FA Control
Chip Conveyor
Programmable Coolant
TSC Ready
Description:

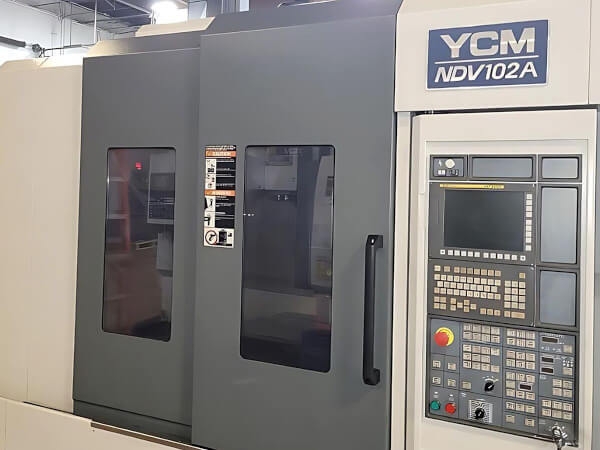

This 2011 YCM NDV102A is a worthy addition to any professional setting. With many high-end features and specifications, it is sure to meet the demands of a variety of operations. It makes use of 3 Axis movements, handled by the YCM Fanuc MXP-200FB CNC Control system to ensure good control of the machine. It features a table size of 44.09 x 25.59 inches and can hold up to 2200 pounds which is a good capacity. The machine can travel 40.15 inches on the X-axis, 23.62 inches on the Y-axis, and 23.62 inches on the Z-axis, offering a wide range of movement.

The spindle speed is at a considerable 15000 RPM, with the spindle taper being CAT 40. The 30HP motor can do many operations without showing signs of slowing down. The tool changer has a capacity of 30 tools. This machine has a feedrate of 394 ipm on all three axes and a rapid traverse rate of 945 ipm also across all axes. Also, the spindle's maximum distance to the table top is 27.559 inches.

This machine doesn't come with coolant through the spindle. The total machine hours cut on this unit is 5112, and it weighs 15400 pounds. This machine is perfect for Die Mold Package Control. It includes many features like Fanuc Data Server with 2GB memory, a remote handwheel, and a coolant system. It also comes with a 30 station Automatic Tool Changer (ATC), and Chip Conveyor with dual augers for effective chip removal.

Interfaces included are a data port, service port, RS-232 port, digital card slot on control and USB port on control. These ensure you can easily connect to and transfer data from the machine. Note that all specifications given are approximate, and you should verify them before buying. The machine is provided as shown in the images and, please call us if you have any questions before making a purchase. All sales are final.
