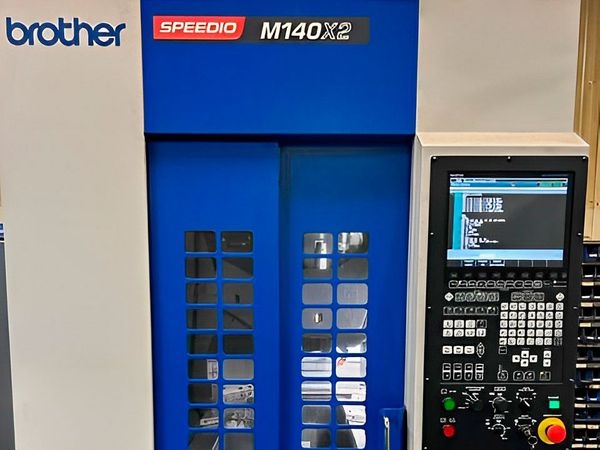

Check out this 2018 Brother Speedio M140X2 Vertical Machining Center now up for sale. This heavy duty professional machining unit filled with comprehensive options was acquired alongside two other machines and is being ...Read More
Notify Me:
Specs:
X Axis Travel: 7.9"
Y Axis Travel: 17.3"
Z Axis Travel: 12"
Rapid Rate X Axis: 1,969 IPM
Rapid Rate Y Axis: 1,969 IPM
Rapid Rate Z Axis: 1,969 IPM
Max Table Load: 88 LBS
Spindle Motor: 10 HP
Spindle Speed: 16,000 RPM
Spindle Taper: BT30 CT
Tool Changer: 22 ATC
Air Assisted Tool Wash System
Automatic Grease Lub System
Chip Shower System
150L Tank
Weight: 5,979 LBS
Included with
Work Light Kit (1-Light) w/Brackets
High Accuracy Mode BII
435 PSI High Pressure Pump
Amano MZ-15 Mist Collector with Top Mount Installation Kit
Rotary Fixture Offset
BLUM Z Nano Toolsetter, Calibration Pin, and Mounting Bracket for M140X2
Schunk 80-130 Vise, Adapter Plate, Jaws, and Two Stops
Y Axis Travel: 17.3"
Z Axis Travel: 12"
Rapid Rate X Axis: 1,969 IPM
Rapid Rate Y Axis: 1,969 IPM
Rapid Rate Z Axis: 1,969 IPM
Max Table Load: 88 LBS
Spindle Motor: 10 HP
Spindle Speed: 16,000 RPM
Spindle Taper: BT30 CT
Tool Changer: 22 ATC
Air Assisted Tool Wash System
Automatic Grease Lub System
Chip Shower System
150L Tank
Weight: 5,979 LBS
Included with
Work Light Kit (1-Light) w/Brackets
High Accuracy Mode BII
435 PSI High Pressure Pump
Amano MZ-15 Mist Collector with Top Mount Installation Kit
Rotary Fixture Offset
BLUM Z Nano Toolsetter, Calibration Pin, and Mounting Bracket for M140X2
Schunk 80-130 Vise, Adapter Plate, Jaws, and Two Stops
Options:
Probe
5 Axis
Work Light Kit (1-Light) w/Brackets
High Accuracy Mode BII
435 PSI High Pressure Pump
Amano MZ-15 Mist Collector with Top Mount Installation Kit
Rotary Fixture Offset
BLUM Z Nano Toolsetter, Calibration Pin, and Mounting Bracket for M140X2
Schunk 80-130 Vise, Adapter Plate, Jaws, and Two Sto
5 Axis
Work Light Kit (1-Light) w/Brackets
High Accuracy Mode BII
435 PSI High Pressure Pump
Amano MZ-15 Mist Collector with Top Mount Installation Kit
Rotary Fixture Offset
BLUM Z Nano Toolsetter, Calibration Pin, and Mounting Bracket for M140X2
Schunk 80-130 Vise, Adapter Plate, Jaws, and Two Sto
