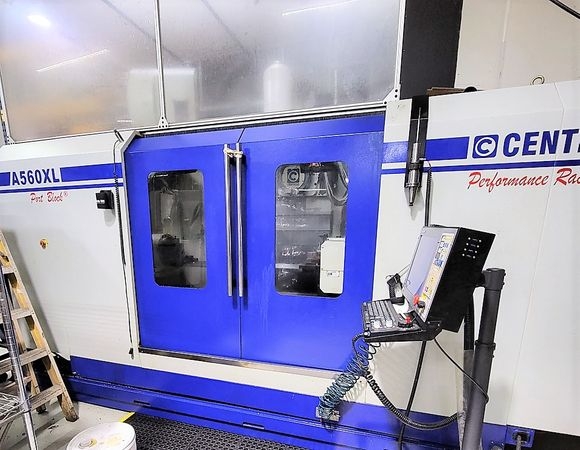

Used CENTRIOD A560XL Vertical Machining Center
Pre-owned CENTRIOD A560XL 2018 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a M400 CNC control. This CNC Machine is currently located in USA. This CENTRIOD Vertical Machining Center is available for a limited time. Get a quote today on this A560XL before it's gone.
Y Axis Travel: 26.7"
Z Axis Travel: 37.7"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 66.9" x 25.5"
Max Table Load: 2,425 LBS
Spindle Motor: 27 HP
Spindle Speed: 20,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Axis drive motors 2X,Y,B 2.9kW, Z 4.4kW, A 1.8kW AC Brushless
Coolant pump 75 PSI Max, up to 35 gal/min, 110 Gallon Capacity
Auto lubrication pump 2.5Amp 2 litre reservoir
Power requirement 50-60Hz, 208-240v, 3-Phase 100A
Air requirement 90-100 PSI (6.2-6.8 Bar)
Dimensions: 196" x 138" x 119"
Weight: 23,000 LBS
4th Axis Rotary Table
