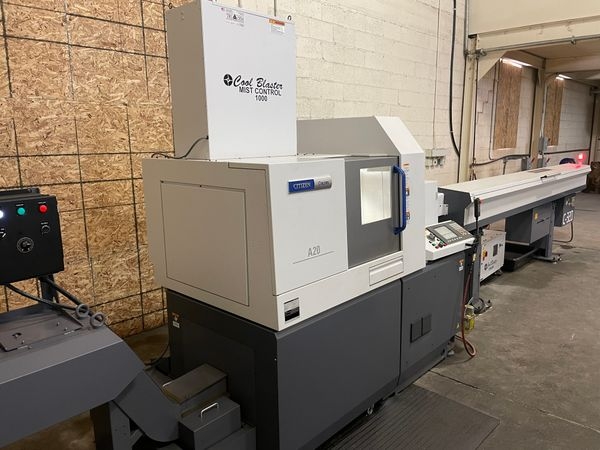

Pre-owned CITIZEN A20 3F7 2019 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Fanuc FS32i-Model B control. This CNC Machine is currently located in USA. This CITIZEN CNC Lathe is available for a li...Read More
Notify Me:
Specs:
Bar Capacity: 0.78"
Spindle Speed: 8,000 RPM
Number of axes: 7
Number of spindles: 2
MAIN SPINDLE
Max. bar diameter: 20 [mm]
Max. machining length: 200 [mm]
Spindle speeds: 10000 [rpm]
Spindle power: 2.2/3.7 [kW]
C axis indexing precision: 0,001 [°]
COUNTER-SPINDLE
Max. bar diameter: 25 [mm]
Spindle speeds: 8.000 [rpm]
Spindle power: 1.1/1.5 [kW]
C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
Number of positions: 9
Number of motorized positions: 4
Live tools speed: 6000 [rpm]
END ATTACHMENT
Number of positions: 4
SECONDARY OPERATION
Number of positions: 4
POWER SUPPLY
Supply voltage: 400 [V]
Total installed power: 7.1 [kVA]
WEIGHT & DIMENSIONS
Machine floor space: 2120 X 1185 [mm]
Machine height: 1820 [mm]
Machine weight: 2200 [kg]
Spindle Speed: 8,000 RPM
Number of axes: 7
Number of spindles: 2
MAIN SPINDLE
Max. bar diameter: 20 [mm]
Max. machining length: 200 [mm]
Spindle speeds: 10000 [rpm]
Spindle power: 2.2/3.7 [kW]
C axis indexing precision: 0,001 [°]
COUNTER-SPINDLE
Max. bar diameter: 25 [mm]
Spindle speeds: 8.000 [rpm]
Spindle power: 1.1/1.5 [kW]
C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
Number of positions: 9
Number of motorized positions: 4
Live tools speed: 6000 [rpm]
END ATTACHMENT
Number of positions: 4
SECONDARY OPERATION
Number of positions: 4
POWER SUPPLY
Supply voltage: 400 [V]
Total installed power: 7.1 [kVA]
WEIGHT & DIMENSIONS
Machine floor space: 2120 X 1185 [mm]
Machine height: 1820 [mm]
Machine weight: 2200 [kg]
Options:
Fanuc FS32i-Model B
Chip Conveyor
Bar Feeder
Upgraded 25 MM Bar Capacity
T10 Live Tool Post (3 Main Spindle Radial & 3 Sub Spindle Radial)
Chip Conveyor
Bar Feeder
Upgraded 25 MM Bar Capacity
T10 Live Tool Post (3 Main Spindle Radial & 3 Sub Spindle Radial)
