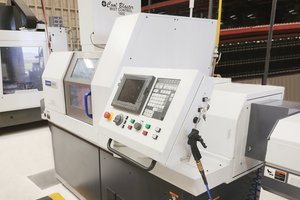

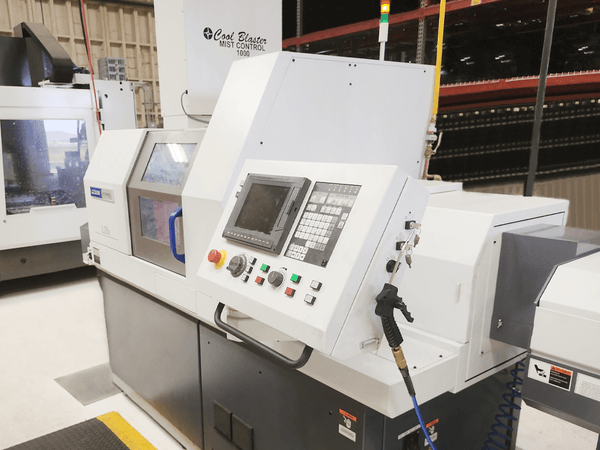

Pre-owned CITIZEN L20 X 2021 Swiss Style CNC Lathe. This Citizen L20 TYPE X has barely been used. It is equipped with a Cincom CNC control, CAV20LE CNC Bar Feed Workpiece Conveyor, 10 Line High Pressure & Mist Syste...Read More
Notify Me:
Specs:
2021 Citizen Model L2-20E 10M
Max. machining diameter (D): Ø20 mm
Max. machining length (L) GB:200 mm/1chucking
Spindle through-hole diameter: Ø26 mm
Max Main spindle speed:10,000 rpm
Max. chuck diameter of back spindle: Ø20 mm
Max. protrusion length of back spindle workpiece: 30 mm
Max. protrusion length: 80 mm
Max Back spindle speed: 8,000 rpm
Gang rotary tool spindle speed: 6,000 rpm
Max Front rotary tool spindle speed: 7,500 rpm
Max Back tool post rotary tool spindle speed: 7,500 rpm
Max Number of tools to be mounted: 44
Gang Turning Tool: 5
Gang Rotary Tool: 25
Front Drilling Tool: 6
Back Drilling Tool: 8
TOOL SIZE
Gang turning tool: 1/2”
Sleeve: 3/4”
CHUCK & BUSHING
Main spindle collet chuck: TF25
Back spindle collet chuck: TF25
Rotary tool collet chuck: ER11, ER16
Chuck for drill sleeves: ER11, ER16
Guide bushing: TD25NS
Rapid feed rate: 32m / min (All Axes except Y2)
MOTORS:
Spindle drive: 2.2 / 3.7 kW
Gang tool post rotary tool drive: 1.0 kW
Back spindle drive: 0.75 / 1.5 kW
Back tool post rotary tool drive: 0.75 kW
Front rotary tool drive: 0.75 kW
Coolant oil: 0.4 kW
Lubricating oil: 0.003 kW
Center height: 1,050 mm
Rated power consumption: 7.3 kVA
Full-load current: 32A
Main breaker capacity: 40A
Air pressure: 0.5 MPa
EQUIPPED WITH:
CINCOM CNC Control
CAV20L2E Automatic Bar Loader
Includes 20mm and 12mm Channel Sets
Bar Loader Installation
10 Line HP System & Mist Control
HP Installation
Workpiece Conveyor
Chip Conveyor with Timer
Program Storage Capacity, 600M Tape Length
Cross Milling Spindle for U155B
FireTrace Fire Suppression System
Servo Ejector Unit w/80mm Stroke
3 Color Patrol Light
Max. machining diameter (D): Ø20 mm
Max. machining length (L) GB:200 mm/1chucking
Spindle through-hole diameter: Ø26 mm
Max Main spindle speed:10,000 rpm
Max. chuck diameter of back spindle: Ø20 mm
Max. protrusion length of back spindle workpiece: 30 mm
Max. protrusion length: 80 mm
Max Back spindle speed: 8,000 rpm
Gang rotary tool spindle speed: 6,000 rpm
Max Front rotary tool spindle speed: 7,500 rpm
Max Back tool post rotary tool spindle speed: 7,500 rpm
Max Number of tools to be mounted: 44
Gang Turning Tool: 5
Gang Rotary Tool: 25
Front Drilling Tool: 6
Back Drilling Tool: 8
TOOL SIZE
Gang turning tool: 1/2”
Sleeve: 3/4”
CHUCK & BUSHING
Main spindle collet chuck: TF25
Back spindle collet chuck: TF25
Rotary tool collet chuck: ER11, ER16
Chuck for drill sleeves: ER11, ER16
Guide bushing: TD25NS
Rapid feed rate: 32m / min (All Axes except Y2)
MOTORS:
Spindle drive: 2.2 / 3.7 kW
Gang tool post rotary tool drive: 1.0 kW
Back spindle drive: 0.75 / 1.5 kW
Back tool post rotary tool drive: 0.75 kW
Front rotary tool drive: 0.75 kW
Coolant oil: 0.4 kW
Lubricating oil: 0.003 kW
Center height: 1,050 mm
Rated power consumption: 7.3 kVA
Full-load current: 32A
Main breaker capacity: 40A
Air pressure: 0.5 MPa
EQUIPPED WITH:
CINCOM CNC Control
CAV20L2E Automatic Bar Loader
Includes 20mm and 12mm Channel Sets
Bar Loader Installation
10 Line HP System & Mist Control
HP Installation
Workpiece Conveyor
Chip Conveyor with Timer
Program Storage Capacity, 600M Tape Length
Cross Milling Spindle for U155B
FireTrace Fire Suppression System
Servo Ejector Unit w/80mm Stroke
3 Color Patrol Light
Options:
Cincom CNC
CAV20L2E Automatic Bar Loader
Workpiece Conveyor
Servo Ejector Unit w/80mm Stroke
Cross Milling Spindle for U155B
FireTrace Fire Suppression System
Servo Ejector Unit w/80mm Stroke
CAV20L2E Automatic Bar Loader
Workpiece Conveyor
Servo Ejector Unit w/80mm Stroke
Cross Milling Spindle for U155B
FireTrace Fire Suppression System
Servo Ejector Unit w/80mm Stroke
