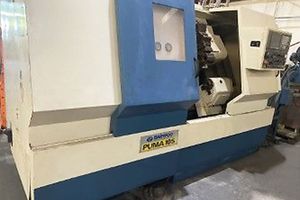

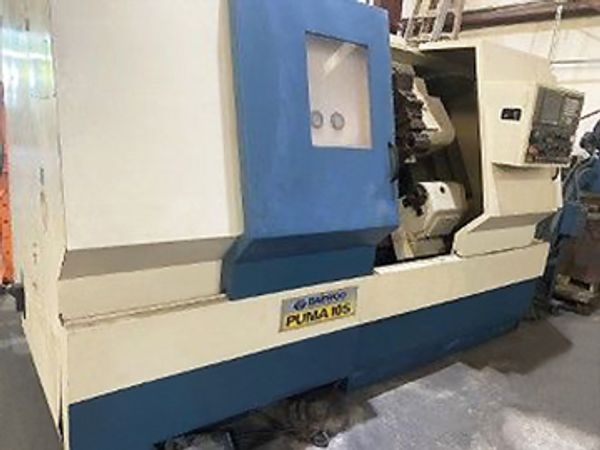

1996 DAEWOO PUMA 10S

General:

Machine Type: CNC Turning Center / Lathe

Manufacturer: Daewoo

Model: Puma 10S (or 10S-B variant)

Year: 1996

Control System: Mitsubishi Meldas 500

Capabilities:

Chuck Size: 10-inch (e.g., Kitagawa hydraulic chuck)

Max Swing Over Bed: 22.44 in (570 mm)

Max Turning Diameter: ~14.96 in (380 mm)

Max Turning Length (Z-axis travel): 30.31 in (770 mm)

Bar Capacity (w/o chuck): 3.05–3.58 in (77–91 mm)

Spindle:

Speed Range: 15 – 3,150 RPM

Motor Power: 30 HP

Spindle Nose: A2-8

Spindle Bore: 3.58 in (91 mm)

Turret:

Tool Stations: 12-position turret

Tool Type: VDI or bolt-on depending on turret style

Axis Travel:

X-Axis Travel: 10.24 in (260 mm)

Z-Axis Travel: 31.5 in (800 mm)

Rapid Traverse X/Z: 480 / 630 IPM

Tailstock:

Type: Programmable hydraulic tailstock

Quill Taper: MT #5

Quill Diameter: 3.94 in (100 mm)

Quill Travel: 4.72 in (120 mm)

Dimensions & Power:

Approx Weight: ~14,000 lbs (6,350 kg)

Footprint: ~112" x 73" x 73" (L x W x H)

Electrical: 220V / 3 Phase / 60 Hz
