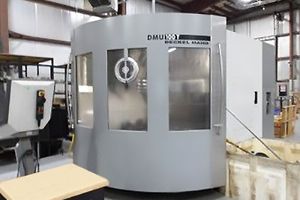

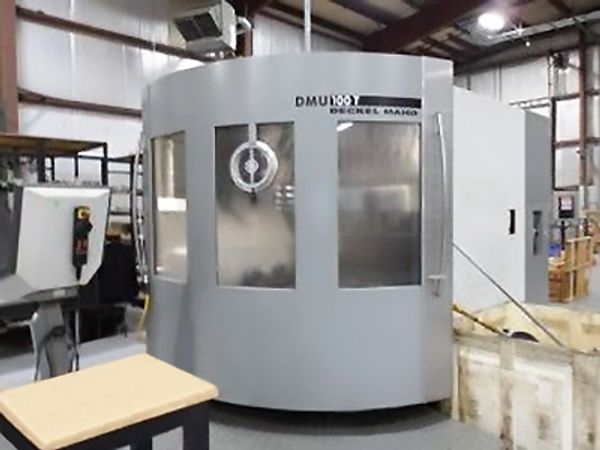

2003 DMG DMU 100T

Y Axis Travel: 49.2"
X Axis Travel: 39.4"
Z Axis Travel: 39.4"
Spindle Motor: 69 HP
Spindle Speed: 12,000 RPM
Spindle Taper: HSK-A 100
Tool Changer: 63 ATC
Working Area - X/Y/Z Axes: 39.4" x 49.2" x 39.4"
Table Size: 43.3" x 35.4"
Table Speeds: 35 RPM
Maximum Table Load: 4,900 lbs
B-Axis Swiveling Milling Head Swivel Range: -30 to 180 Degrees
Spindle Speeds: 0 - 12,000 RPM
Spindle Motor: 69 HP
Spindle Taper: HSK-A 100
Tool Changer Capacity: 63 Positions
Floor Space Requirement: 258.3 Square Feet
Approximate Machine Height: 142 Inches
Approximate Machine Weight: 54,100 Pounds


Equipped With
- Heidenhain TNC-640 3D Control
- Universal Head with Controlled B-Axis
- Coolant Thru-Spindle (80 Bar)
- Probing
- Tool Measurement
- 3D Quickset
- Chip Conveyor
Table Size: 43.3" x 35.4"
Dimensions: " x null" x 142"
Weight: 54,100 LBS
Max Table Load: 4,900 LBS

Probe
Chip Conveyor
Coolant Thru Spindle
5 Axis
