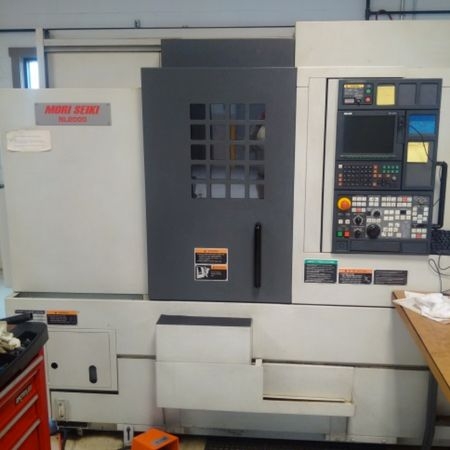

Pre-owned DMG MORI SEIKI NL2000 2009 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Georgia. This DMG MORI SEIKI CNC Lathe is available for a limited time. Get a quote today on this NL2000 before it's gone.
Notify Me:
Specs:
Chuck Size 8"
Max Diameter Bar Capacity 2.5"
Max Swing Over Bed / Carriage / Cover 36.4" / 29.7" / 22.8"
Max Machining Length 20.1"
Spindle Motor 24.8 HP
Spindle Speed 5000 RPM
Spindle Nose A2-6
Spindle Bore 2.9"
Tools 12 (All Live)
Milling Motor 7.5 HP
Milling Speed 6000 RPM
Rapid Traverse Rates 1181 IPM
X-Axis Travel 10.2"
Z-Axis Travel 23.2"
Y-Axis Travel + / - 2.0"
C-Axis Index .001 Degrees
Turret Index (Single Step) 0.25 Seconds
Machine Dimensions (L x W x H) 106.1" x 75.7" x 83.5"
Machine Weight 12,760 lbs.
Max Turning Diameter (Max / Std) 14" / 10.8"
Tailstock Taper MT#4
Max Diameter Bar Capacity 2.5"
Max Swing Over Bed / Carriage / Cover 36.4" / 29.7" / 22.8"
Max Machining Length 20.1"
Spindle Motor 24.8 HP
Spindle Speed 5000 RPM
Spindle Nose A2-6
Spindle Bore 2.9"
Tools 12 (All Live)
Milling Motor 7.5 HP
Milling Speed 6000 RPM
Rapid Traverse Rates 1181 IPM
X-Axis Travel 10.2"
Z-Axis Travel 23.2"
Y-Axis Travel + / - 2.0"
C-Axis Index .001 Degrees
Turret Index (Single Step) 0.25 Seconds
Machine Dimensions (L x W x H) 106.1" x 75.7" x 83.5"
Machine Weight 12,760 lbs.
Max Turning Diameter (Max / Std) 14" / 10.8"
Tailstock Taper MT#4
Options:
Tool Presetter
Tailstock
Live Tooling
Y Axis
Tailstock
Live Tooling
Y Axis
