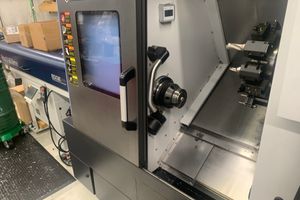

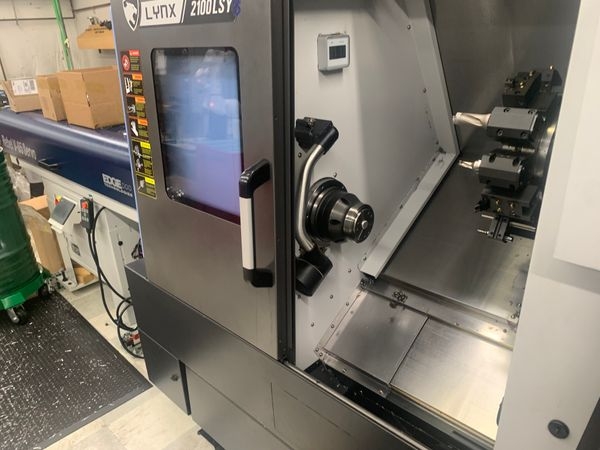

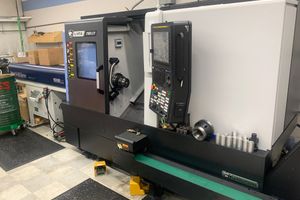

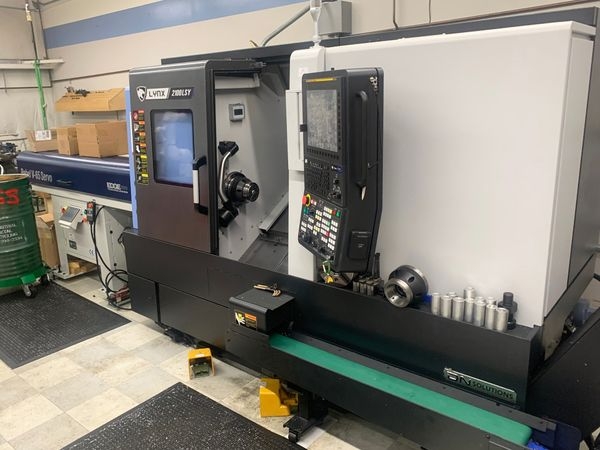

2023 DOOSAN LYNX 2100LSYB

Bar Capacity: 2"
Chuck Size: 6.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.07"
Z Axis Travel: 22"
Rapid Rate Z Axis: 1,417 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,417 IPM
Max Turning Dia: 11.8"
Max Turning Length: 20"
Max Swing: 23.6"
C-AXIS:
Minimum programmable angle (degrees) .001
Rapid traverse rate (RPM) 200
C-axis contouring torque (63Nm) 46.4 ft-lbs
C-axis braking torque (511Nm) 376 ft-lbs
C-axis repeatability +/- .006 deg.
C-axis positioning accuracy .0167 deg.

ROTATING TOOLS:
Rotating tool RPM 60 - 6,000 RPM
Rotating tool spindle motor (10 min. rating) 5 Hp
Rotating tool torque (10 min. rating 17.3 lbs.
Rotating tool collet type ER 20
Milling collet capacity .78" to .5"

Y-AXIS:
Y-axis travel 4.13” (±2.065”)
Y-axis rapid traverse rate 394 IPM

SUB SPINDLES:
B axis travel (sub spindle) 22.0”
Sub spindle guideway span 8.93”
Spindle speed 6,000 RPM
Spindle motor (30 min. rating) 7.3 HP
Maximum torque (30 min. rating) 34 ft-lbs.
Spindle nose 110mm flat nose
Spindle bore 1.69”
Draw tube ID 1.375"
Rapid traverse rate (30 m/min) 1181 IPM
Minimum programmable angle .001 degree (full C axis)
Dimensions: 112" x 67" x 81"
Weight: 8,800 LBS

Fanuc
Chip Conveyor
Tool Presetter
Bar Feeder
Live Tooling
Sub Spindle
Y Axis
