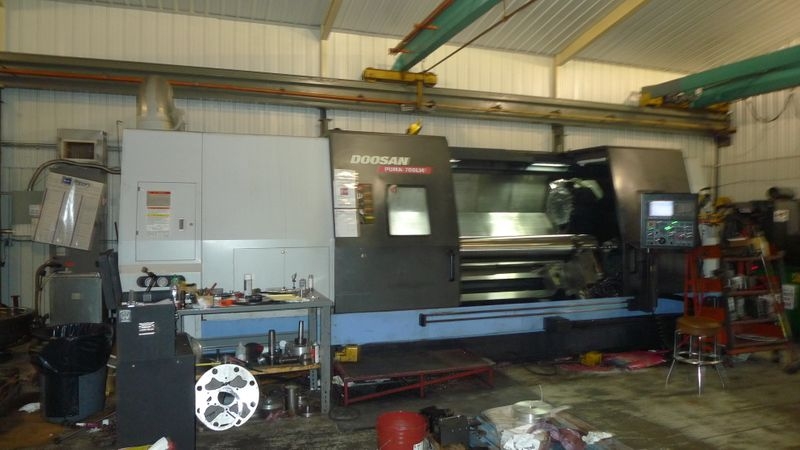

2009 DOOSAN PUMA 700LM

ID:4624
Brand:DOOSAN
Model: PUMA 700LM
Year:2009
Category:CNC Lathe
Location:Oklahoma

Located In Oklahoma

SHIPPING COST :

Hello!

Machine Overview

Specs:

Max swing over bed 1.030 mm
Max swing over saddle 800 mm
Max turning diameter 900 mm
Max turning length 3.200 mm
Travel X-axis 470 mm
Travel Z-axis 3.235 mm
Travel C-axis 360.000°
Spindle speed, 3 steps 3-1.500 rpm
Spindle bore diameter 181 mm
Spindle nose ASA A1-15
Spindle front bearing diameter 240 mm
Spindle motor 45 kW
Spindle max torque 673 kgf.m
Rotary tool max spindle speed 3.000 rpm
Rotary tool max endmill capacity Ø 34 (ER50) mm
Rotary tool max tapping capacity M 30 mm
Rotary tool spindle motor 11 kW
Rotary tool max torque 14.3 kgf.m
Tail stock travel 3.135 mm
Tail stock quill diameter 160 mm
Tail stock quill bore diameter MT 6 ( Built-in)
Tail stock quill travel 150 mm
Rapid traverse X-axis 12 m/min
Rapid traverse Z-axis 10 m/min
Cutting feedrate X-axis 0,001-2.000 mm/rev
Cutting feedrate Z-axis 0,001-2.000 mm/rev
Machine height 2,590 mm
Floor space length 7,360 mm
Floor space width 2,770 mm
Machine weigth 21.500 kg

Description:

Pre-owned DOOSAN PUMA 700LM 2009 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Oklahoma. This DOOSAN CNC Lathe is available for a limited time. Get a quote today on this PUMA 700LM before it's gone.
