Seller Needs:
$41,000|
1956
|
0

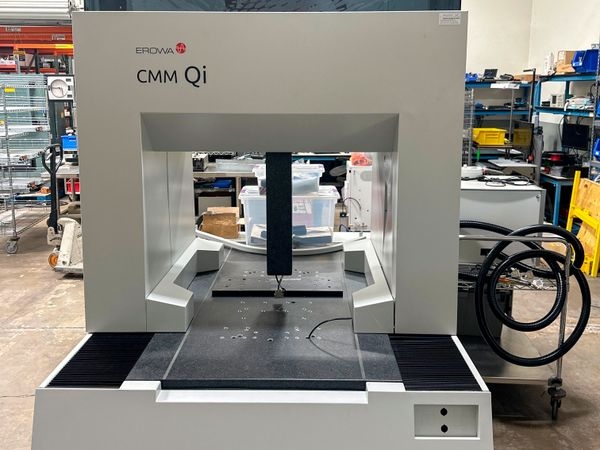

This listing is being put forth to describe a pre-owned 2016 EROWA CMM QI ER-069000 Inspection that is currently located in California and available immediately. The machine is fully functional and has been well-maintained. W...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 23.62"
Y Axis Travel: 27.56"
Z Axis Travel: 19.68"
Range X-axis: 600 mm
Range Y-axis: 700 mm
Range Z-axis: 500 mm
Maximum distance between table and probe holder (without probe): 668 mm
Maximum distance between the portal: 650 mm
Measuring accuracy: 1.5 um +1_/500 (L in mm)
Environmental conditions: 190C-21 0C Delta O_50C / h
Software
Measuring Software. Metrolog X4
Machine dimensions
Height: 2700 mm
Footprint: 1424 mm x 2105 mm
Max workpiece load: 650 kg
Machine weight (without load) 2350 kg
Dimensions: 56" x 83" x 106"
Weight: 5,180
Y Axis Travel: 27.56"
Z Axis Travel: 19.68"
Range X-axis: 600 mm
Range Y-axis: 700 mm
Range Z-axis: 500 mm
Maximum distance between table and probe holder (without probe): 668 mm
Maximum distance between the portal: 650 mm
Measuring accuracy: 1.5 um +1_/500 (L in mm)
Environmental conditions: 190C-21 0C Delta O_50C / h
Software
Measuring Software. Metrolog X4
Machine dimensions
Height: 2700 mm
Footprint: 1424 mm x 2105 mm
Max workpiece load: 650 kg
Machine weight (without load) 2350 kg
Dimensions: 56" x 83" x 106"
Weight: 5,180
Options:
Metrologic Metrolog X4 Software install CD (no license dongle, license will need to be transferred to new owner by Metrologic)
Metrolog X4 Training Manual
Schematic/Installation Report Binder
PICO USB Datalogger
2x Spare Accordian Covers
Calibration Template
Metrologic M471 Joystick / Pendant
Metrologic ME5011 CNC Controller
Renishaw PHC10-3 Plus Probe Head Controller
Renishaw PH10MQ Probe Head
Renishaw SP25M 25mm Scanning Probe
Renishaw FCR25-L3 three port standalone change rack
Saphirwerk Calibration Sphere w/ Cal Certificate
Spare Renishaw head connector
Operating Manual Binder
Renishaw PH10 Plus CD
Renishaw PHC10-3 Plus CD
PICO PicoLog R5.24.8 CD
Metrologic MetroTune Controller Utility Software CD
Shipping Brackets
Small bag of spare hardware and hex keys
Box of levelling shims
Renishaw A-2237-1102 SM25-2 Scanning Module Kit
Renishaw A-5003-6151 M3 Carbon Fibre Stylus Kit for SP25M/SM25-1/SH25-1
Metrolog X4 Training Manual
Schematic/Installation Report Binder
PICO USB Datalogger
2x Spare Accordian Covers
Calibration Template
Metrologic M471 Joystick / Pendant
Metrologic ME5011 CNC Controller
Renishaw PHC10-3 Plus Probe Head Controller
Renishaw PH10MQ Probe Head
Renishaw SP25M 25mm Scanning Probe
Renishaw FCR25-L3 three port standalone change rack
Saphirwerk Calibration Sphere w/ Cal Certificate
Spare Renishaw head connector
Operating Manual Binder
Renishaw PH10 Plus CD
Renishaw PHC10-3 Plus CD
PICO PicoLog R5.24.8 CD
Metrologic MetroTune Controller Utility Software CD
Shipping Brackets
Small bag of spare hardware and hex keys
Box of levelling shims
Renishaw A-2237-1102 SM25-2 Scanning Module Kit
Renishaw A-5003-6151 M3 Carbon Fibre Stylus Kit for SP25M/SM25-1/SH25-1
Seller:
RobN752
Location:
CA
