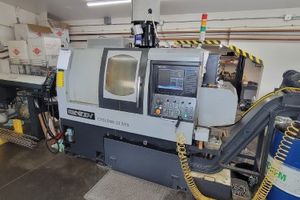

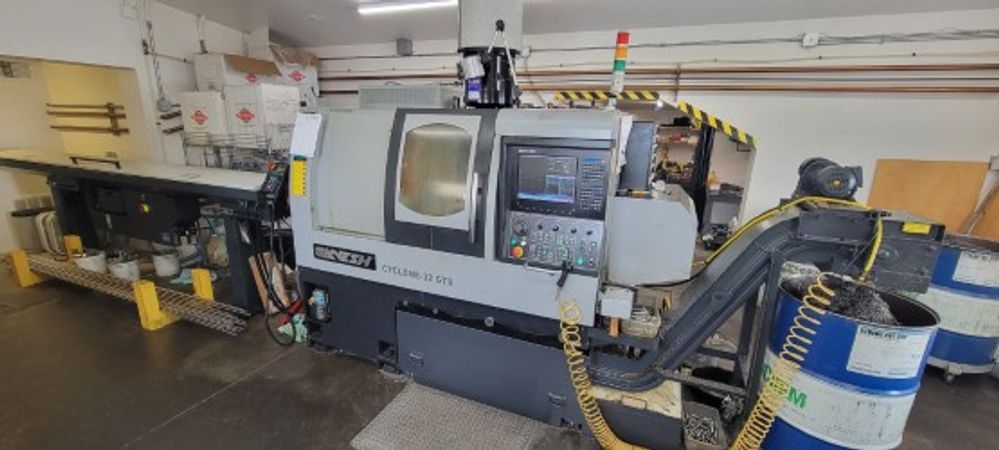

2011 GANESH CYCLONE32GTS

Spindle Center Height to Table: 3.464”
Spindle Center Height to Floor: 42.2”
C”-Axis on both spindles for Live Tool Applications
? Ganesh Cyclone 32GTS – Main Specifications
Machine type: CNC gang-tool twin-spindle lathe
Axes: 6-axis (X1, Z1, C1 + X2, Z2, C2)
Bar capacity: 1.25" (32 mm)
Spindle speed: up to 6,000 RPM
Main spindle motor: 10 HP (7.5 kW)
Sub-spindle: Yes (synchronized with main spindle)
Control: Ganesh Super 900T (multi-tasking CNC)
?? Machining & Tooling
Dual gang-tool slides (parallel layout for faster cycle times)
C-axis on both spindles (full contouring for milling/turning)
Live tooling capability (driven tools supported)
Simultaneous front + back machining (main + sub spindle)
Rigid tapping on both spindles
? Travels & Capacity (typical)
X-axis travel: ~13 in (330 mm)
Z-axis travel: ~10.6 in (270 mm)
Max turning diameter: ~200 mm (varies by setup)
?? Physical Specs
Weight: ~7,300 lbs
Dimensions: ~108" × 58" × 98"

Chip Conveyor
Bar Feeder
