Machine Overview

Specs:
Bar Capacity: 1.625"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Max Turning Length: 4.13"
Double Y Axis and double C Axis
Traub-42 / 173E collet style (main & sub-spindle)
3-Bank axial live tool
30-Tools with 8-Driven tools standard
Simultaneous Main & sub-spindle machining
Spindle bore diameter: 1.732"
Collet closer style: Lever Action
Spindle bearing: Quad duplex pair
Max. workpiece length for front ejection: 110mm
Main spindle stroke: 12.20"
Rapid Traverse Rate, X/Y/Z-1, X/Y/Z-2: 944 ipm
X1, Z1 Axis motor power: 2 HP
X2, Y1, Y2, Z2 Axis motor power: 1 HP
X1, Y2 linear ways: Ball bearing
X2, Y1, Z1, Z2 linear ways: Roller bearing
Dimensions: 121" x 67" x 83"
Options:
Mitsubishi M800 Control
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
LNS Alpha 552 Barfeeder
MP Systems 4-Port High Pressure System
Oil Chiller
Mistbuster 850 oil filtration system
Description:

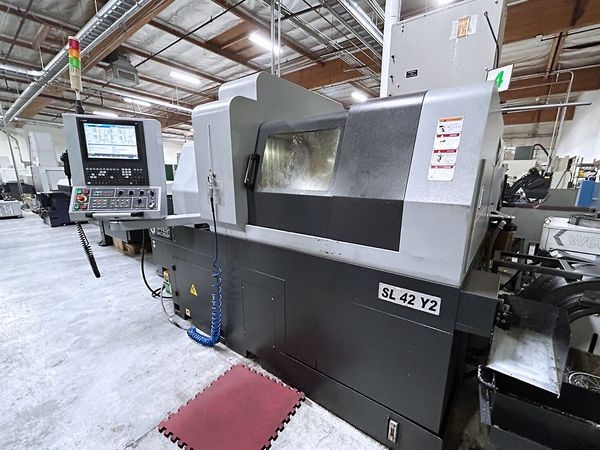

This 2017 GANESH GENTURN SL42Y2 CNC Lathe is in top-notch operational and cosmetic shape, making it a worthy addition to any machine shop or manufacturing facility. It stands ready for quick dispatch and is located in sunny California. The lathe operates on a Mitsubishi M800 Control, providing enhanced control over your machining endeavours.

The GANESH GENTURN SL42Y2 boasts numerous unique features that set it apart from its competitors. For instance, it features a Chip Conveyor that aids in keeping the lathe tidy by moving waste materials out of the way. In simpler terms, the Chip Conveyor acts like a trash can that's constantly being emptied.

An additional feature that deserves spotlight is the Bar Feeder. It feeds material to the lathe, supplying it the parts it needs. Similarly, the Parts Catcher is as handy as a catch-all dish by your front door, grabbing any loose components that fall off during the process.

Perhaps most notably, the unit encompasses Live Tooling, which means the tooling is all done while the machine is up and running. With Sub Spindle and Y Axis, it allows backside machining of the workpiece in a single setup and enables turning and milling operations. Furthermore, the 5 Axis feature allows the machine to move in five different ways, providing the ability to craft intricate and complex parts.

The lathe encompasses an LNS Alpha 552 Barfeeder, which enables the bar to be fed in and out of the machine easily. For high fluid delivery, the lathe possesses an MP Systems 4-Port High Pressure System, enhancing the effectiveness of operations. With an Oil Chiller, it ensures the machine doesn't get too hot by chilling the oil utilized within. Lastly, the Mistbuster 850 oil filtration system purifies the machine oil, removing any impurities and ensuring the smooth running of the machine.

In simple terms, this used 2017 GANESH GENTURN SL42Y2 CNC Lathe, with its top-grade operational and aesthetic state and array of features and upgrades, holds the potential to be a beneficial acquisition for any machining venture.
