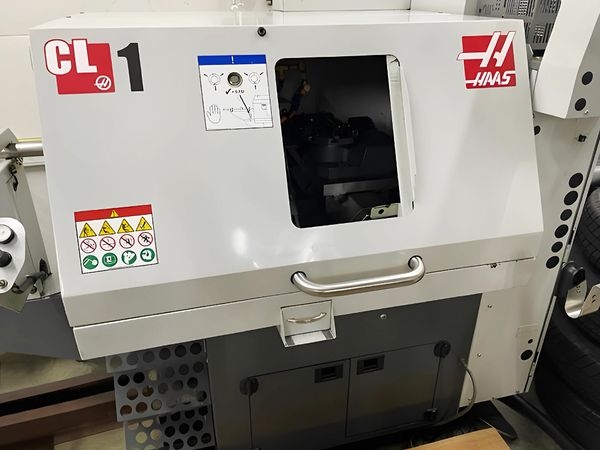

Pre-owned HAAS CL1 2019 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas Next Gen CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited...Read More
Notify Me:
Rigging:
$1,200
Specs:
X Axis Travel: 12"
Z Axis Travel: 8"
Max Turning Diameter: 5"
Max Turning Length: 12"
Max Swing: 11"
Max Cutting Diameter: 5"
Spindle Speed: 6,000 RPM
Spindle Motor: 5 HP
Bar Capacity: 1"
Turret Tools: 8 Station
Equipped With"
NextGen CNC Control
USB
Live Tooling with C-Axis Upgrade
Parts Catcher
8-Station Turret
Haas 6' Bar Feed Upgrade
Control Options Include: Rigid Tapping
User Definable Macros, Spindle Orientation
Machine Dimensions: 120" L x 54" W x 82" H (with Bar Feed)
Machine Weight: 2,020 LBS
Z Axis Travel: 8"
Max Turning Diameter: 5"
Max Turning Length: 12"
Max Swing: 11"
Max Cutting Diameter: 5"
Spindle Speed: 6,000 RPM
Spindle Motor: 5 HP
Bar Capacity: 1"
Turret Tools: 8 Station
Equipped With"
NextGen CNC Control
USB
Live Tooling with C-Axis Upgrade
Parts Catcher
8-Station Turret
Haas 6' Bar Feed Upgrade
Control Options Include: Rigid Tapping
User Definable Macros, Spindle Orientation
Machine Dimensions: 120" L x 54" W x 82" H (with Bar Feed)
Machine Weight: 2,020 LBS
Options:
Haas Next Gen CNC Control
Bar Feeder
Parts Catcher
Live Tooling
Live Tooling
Full C-Axis
Parts Catcher
Haas Bar Feed 6 FT Upgrade
Bar Feeder
Parts Catcher
Live Tooling
Live Tooling
Full C-Axis
Parts Catcher
Haas Bar Feed 6 FT Upgrade
