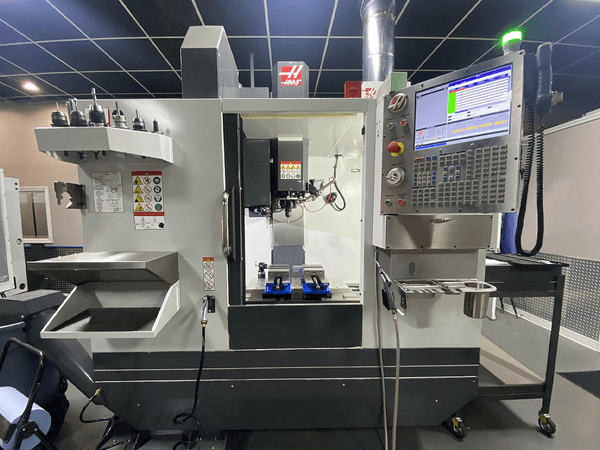

Presenting for sale is a used, pristine 2017 HAAS DM2 Vertical Machining Center, priced for immediate sale and located in North Carolina. Over the years, we have meticulously maintained this machine to keep it in near-new con...Read More
Notify Me:
Specs:
X Axis Travel: 28"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 18 ATC
Spindle Nose to Table: 6"-21.5"
Max Tapping Speed: 5000 RPM
Table Size: 34" x 15"
Dimensions: 91" x 100" x 98"
Weight: 5,350 LBS
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 18 ATC
Spindle Nose to Table: 6"-21.5"
Max Tapping Speed: 5000 RPM
Table Size: 34" x 15"
Dimensions: 91" x 100" x 98"
Weight: 5,350 LBS
Options:
Haas Next Gen CNC Control
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
TRT-100 5th axis
High Speed Machining
15,000 RPM Spindle
300 PSI Thru Spindle Coolant
Extended Z Axis Clearance (4")
4th and 5th Axis Drives
Enclosure Exhaust System
Automatic Air Gun
WIFI Connection
Remote Jog Handle
Chip Auger
Probe
Coolant Thru Spindle
Programmable Coolant
5 Axis
TRT-100 5th axis
High Speed Machining
15,000 RPM Spindle
300 PSI Thru Spindle Coolant
Extended Z Axis Clearance (4")
4th and 5th Axis Drives
Enclosure Exhaust System
Automatic Air Gun
WIFI Connection
Remote Jog Handle
Chip Auger
