Hello!

Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 13.75"
Max Turning Length: 32.5"
Max Swing: 21"

SUB-SPINDLE
Chuck Size: 8.3"
Spindle Nose: A2-5
Drive System: Direct Speed
Max Rating: 15 hp
Max Speed: 4000 rpm
Max Torque: 100.0 ft-lbf

LIVE TOOLING
Max Speed: 4000 rpm
Power: 5 HP

Dimensions: 171" x 90" x 98"
Weight: 12,200 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Description:

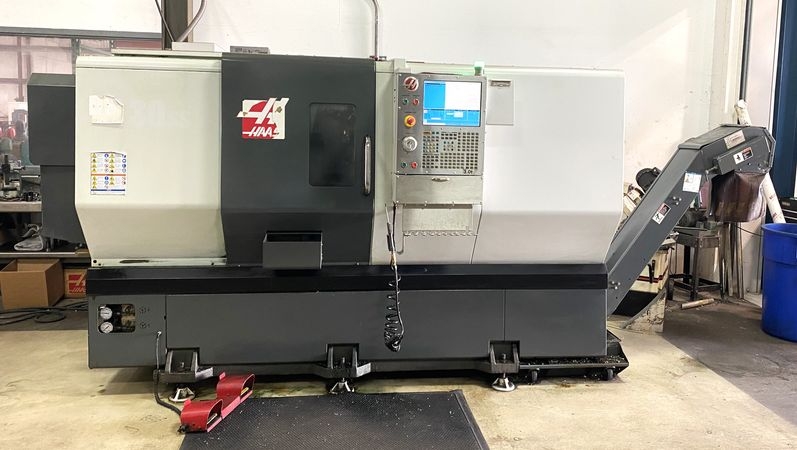

This 2014 HAAS DS30 CNC Lathe is a great choice for any shop looking for a Live tool, twin spindle machine. This Haas 3 Axis machine is equipped with a 10" chuck size, a 3" bar capacity, and a spindle speed of 4,500 RPM on the main side. It also has a 30 HP spindle motor, X axis travel of 9.4", and Z axis travel of 32.5". The rapid rate Z axis is 945 IPM, and the turret tools are 12 station. The rapid rate X axis is 472 IPM, and the max turning diameter is 13.75". The max turning length is 32.5", and the max swing is 21". The sub-spindle has an 8.3" chuck size, an A2-5 spindle nose, and a direct speed drive system. The max rating is 15 hp, the max speed is 4000 rpm, and the max torque is 100.0 ft-lbf. The live tooling has a max speed of 4000 rpm, a power of 5 HP, and is controlled by the HAAS CNC Control. This machine also comes with several options, including a chip conveyor, tool presetter and parts catcher. This 2014 HAAS DS30 CNC Lathe is a great choice for any shop looking for a all in one solution CNC machine.
