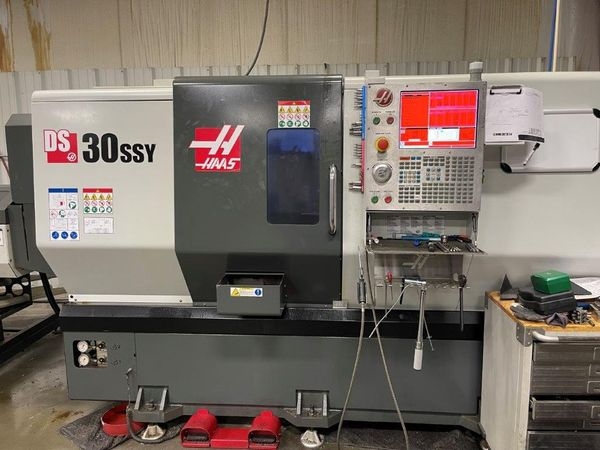

Pre-owned 2016 HAAS DS30SSY CNC Lathe has below-average cutting time and is equipped with a Haas CNC control, milling capabilities, a sub spindle with a Full-C-Axis, Y-Axis, and a Haas Servo Bar Feed. This Ha...Read More
Notify Me:
Rigging:
$2,200
Specs:
Max Turning Diameter: 16"
Max Turning Length: 23"
Max Swing: 31.7"
Swing over the saddle: 20.80"
X Axis Travel: 12.5"
Z Axis Travel: 23"
Y axis travel: 4"
B axis travel: 32.68" (Sub Spindle)
C axis: 360° (0.001°) Both Spindles
Spindle Speed:
Main / Sub / Milling: 4,500 rpm / 4,800 rpm / 6,000 rpm
Spindle Motor: 30 HP
Bar Capacity: 3"
Chuck Size: 8"
Turret Tools: 24 Stations / 12 Live
EQUIPPED WITH:
Haas CNC Control
Sub Spindle w/ Full C-Axis
Tool Pre-Setter
Parts Catcher
Chip Conveyor
Also Included: 44Haas Bar Feed
10x Live Holders Included
Machine Dimensions: 171" x 90" x 92"
Machine Weight: 16,000 LBS
Bar Feed Dims: 96" L x 36" W x 48" H
Bar Feed Weight: 1,500 lbs.
Max Turning Length: 23"
Max Swing: 31.7"
Swing over the saddle: 20.80"
X Axis Travel: 12.5"
Z Axis Travel: 23"
Y axis travel: 4"
B axis travel: 32.68" (Sub Spindle)
C axis: 360° (0.001°) Both Spindles
Spindle Speed:
Main / Sub / Milling: 4,500 rpm / 4,800 rpm / 6,000 rpm
Spindle Motor: 30 HP
Bar Capacity: 3"
Chuck Size: 8"
Turret Tools: 24 Stations / 12 Live
EQUIPPED WITH:
Haas CNC Control
Sub Spindle w/ Full C-Axis
Tool Pre-Setter
Parts Catcher
Chip Conveyor
Also Included: 44Haas Bar Feed
10x Live Holders Included
Machine Dimensions: 171" x 90" x 92"
Machine Weight: 16,000 LBS
Bar Feed Dims: 96" L x 36" W x 48" H
Bar Feed Weight: 1,500 lbs.
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Chip Conveyor
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
