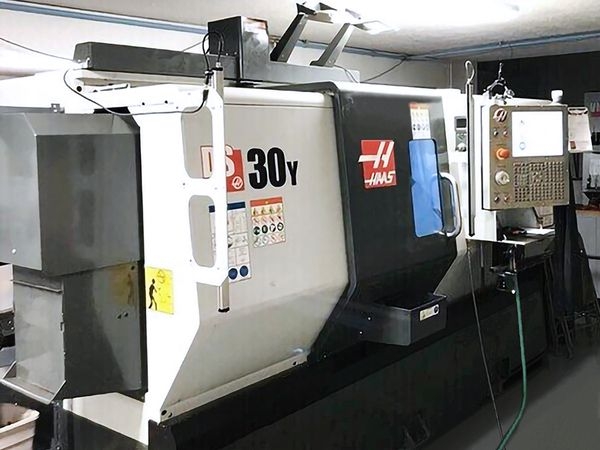

2017 HAAS DS30Y

SWING OVER BED: 31.75"
MAX CUTTING DIAMETER: 18"
MAX CUTTING LENGTH: 23"
DISTANCE BETWEEN CENTERS: 23"
X-AXIS TRAVEL: 12.5"
Z-AXIS TRAVEL: 23"
CHUCK SIZE: 10"
BAR CAPACITY: 3"
SPINDLE NOSE: A2-6
SPINDLE MOTOR: 30 hp
SPINDLE SPEED: 4,500 RPM
SUB SPINDLE: Yes
SUB SPINDLE - CHUCK SIZE: 8.3"
SUB SPINDLE - SPINDLE NOSE: A2-5
SUB SPINDLE - SPINDLE MOTOR: 20 hp
SUB SPINDLE - SPINDLE SPEED: 4,800 RPM
TURRET CAPACITY: 24
TURRET TYPE: BMT65
LIVE MILLING: Yes
LIVE MILLING SPEED: 6,000 RPM
Y-AXIS: Yes

Y-AXIS
LIVE TOOLING WITH 6,000 RPM UPGRADE
24 STATION BMT65 TURRET
BELT TYPE CHIP CONVEYOR
8.3" HYDRAULIC CHUCK (SUB)
10" HYDRAULIC CHUCK (MAIN)
TOOL PRESETTER
VPS EDITING
PARTS CATCHER
CHUCK AIR BLAST
55-GALLON COOLANT TANK
CABINET COOLER
RIGID TAPPING
SPINDLE ORIENTATION
HIGH PRESSURE COOLANT (MAIN & SUB)
BARFEED INTERFACE
ENCLOSURE EXHAUST SYSTEM (MIST COLLECTOR)
AUTO DOOR
MACROS
1 GB
HIGH INTENSITY LIGHTING
SPINDLE LINER GUIDE & KITLIVE TOOL HOLDERS INCLUDED:
(4) 90 DEGREE RADIAL
(6) STRAIGHT AXIAL** ORIGINAL OWNER
** AS OF APRIL, SPINDLE TIME: 493 HOURS** MACHINE MANUFACTURED DATE: OCTOBER, 2017
** MACHINE CUTTING PRIMARILY ALUMINUM & SOME STEEL** IN PLANT UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE

HAAS CNC Control
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
LIVE TOOLING WITH 6,000 RPM UPGRADE
24 STATION BMT65 TURRET
8.3" HYDRAULIC CHUCK (SUB)
10" HYDRAULIC CHUCK (MAIN)
CABINET COOLER
HIGH PRESSURE COOLANT (MAIN & SUB)
AUTO DOOR
RIGID TAPPING, SPINDLE ORIENTATION
CHUCK AIR BLAST
