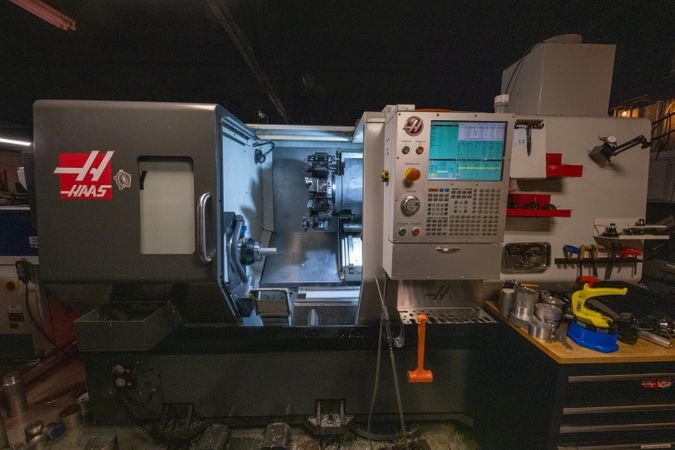

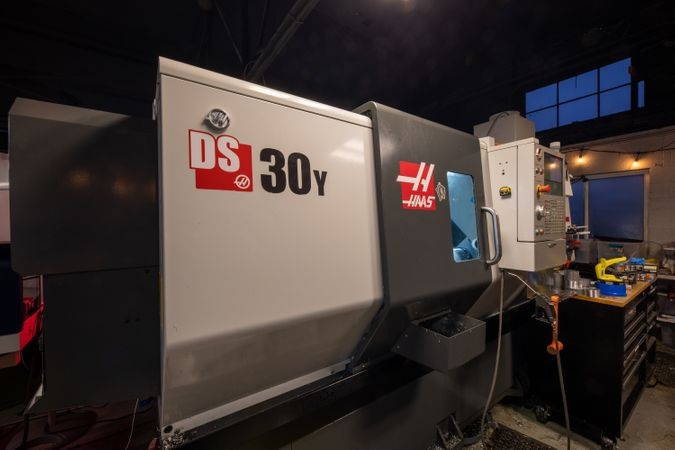

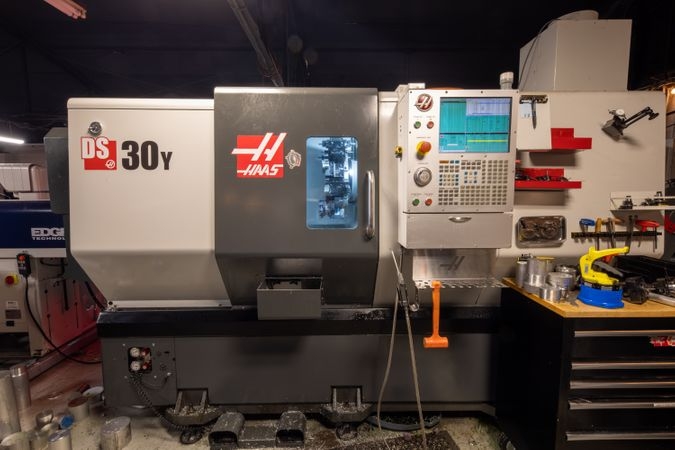

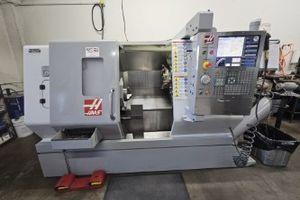

Pre-owned HAAS DS30Y 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote ...Read More
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing Front Apron 31.8"
Swing Over Cross Slide 20.8"
Swing Second Spindle 21.8"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Drive System Direct Speed
Max Torque 275 ft-lbf
Spindle Bore ø 3.50"
Main Spindle C Axis
Max Rating 5 hp
Positioning (±) 0.01 °
Brake Clamp Force 1000 lbf
Brake Diameter 14.4"
Interpolated Motion and Positioning
SUB SPINDLE:
Chuck Size 8"
Spindle Nose A2-5
Drive System Direct Speed
Max Rating 20 hp
Max Speed 4800 rpm
Max Torque 110 ft-lbf
Spindle Bore 2"
Bar Capacity 2"
Boring Bar Rear Clearance 4"

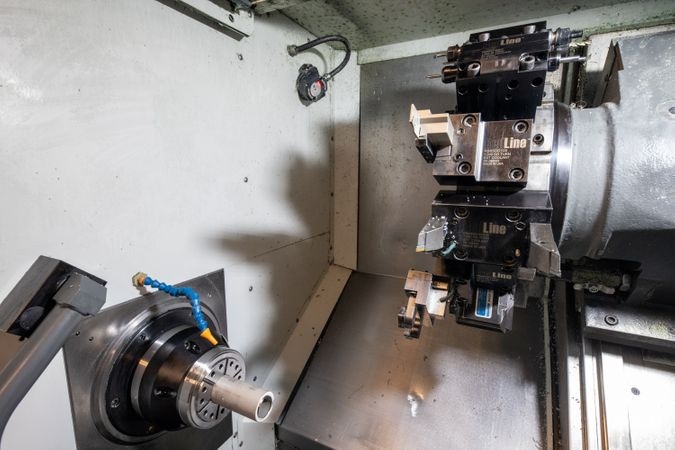

LIVE TOOLING:
Y Axis ± 2.0"
Max Speed 6000 rpm
Drive Ratio 1:1
Tooling BMT65
Coolant Capacity 65gal
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing Front Apron 31.8"
Swing Over Cross Slide 20.8"
Swing Second Spindle 21.8"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Drive System Direct Speed
Max Torque 275 ft-lbf
Spindle Bore ø 3.50"
Main Spindle C Axis
Max Rating 5 hp
Positioning (±) 0.01 °
Brake Clamp Force 1000 lbf
Brake Diameter 14.4"
Interpolated Motion and Positioning
SUB SPINDLE:
Chuck Size 8"
Spindle Nose A2-5
Drive System Direct Speed
Max Rating 20 hp
Max Speed 4800 rpm
Max Torque 110 ft-lbf
Spindle Bore 2"
Bar Capacity 2"
Boring Bar Rear Clearance 4"
LIVE TOOLING:
Y Axis ± 2.0"
Max Speed 6000 rpm
Drive Ratio 1:1
Tooling BMT65
Coolant Capacity 65gal
Dimensions: 171" x 90" x 92"
Weight: 16,000 LBS
Options:

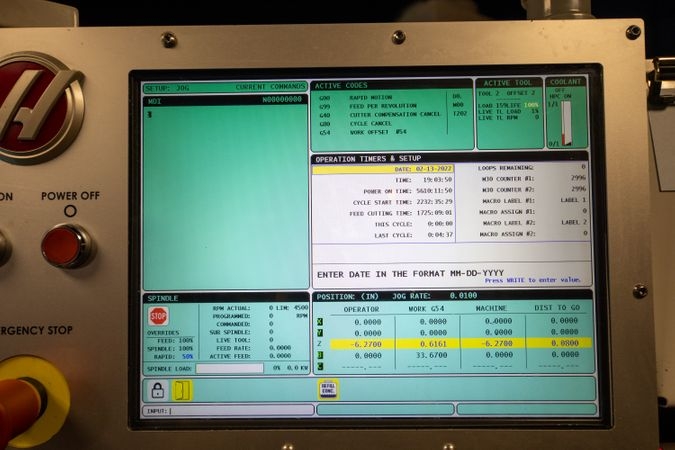

Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
ROYAL CHUCK + 3X COLLETS
HP COOLANT
AUTO-REFILL
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
ROYAL CHUCK + 3X COLLETS
HP COOLANT
AUTO-REFILL
