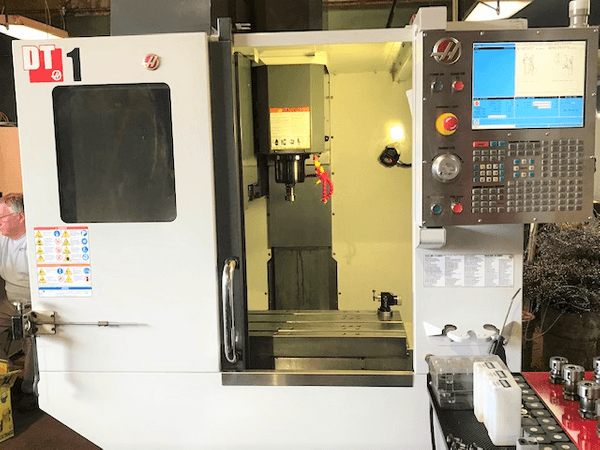

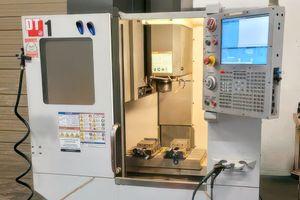

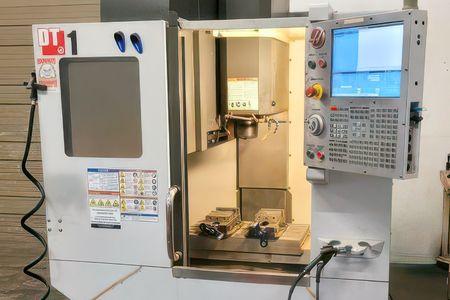

Pre-owned HAAS DT1 2013 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in New York. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this DT1 before it's gone.
Notify Me:
Specs:
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Table Size: 26" x 15"
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 12,000 RPM
Spindle Taper: BT 30
Tool Changer: 20 ATC
Max Torque 46 ft-lbf
Max Cutting 1200 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 2"
Max Tool Length 7"
Chip-to-Chip (avg) 2.4 s
Tapping Speed 5000 rpm
Coolant Capacity 55 gal
Dimensions: 80 in x 100 in x 98 in
Weight: 5,150 LBS
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Table Size: 26" x 15"
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 12,000 RPM
Spindle Taper: BT 30
Tool Changer: 20 ATC
Max Torque 46 ft-lbf
Max Cutting 1200 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 2"
Max Tool Length 7"
Chip-to-Chip (avg) 2.4 s
Tapping Speed 5000 rpm
Coolant Capacity 55 gal
Dimensions: 80 in x 100 in x 98 in
Weight: 5,150 LBS
Options:
Probe
Rigid Tapping
(15) Kennametal TG Collet Chucks
(17) Kennametal DA Collet Chucks
(5) Parlec EROS Collet Chucks
(2) Tapping Chucks
(1) Set of TG Collets
(1) Set of DA Collets
(18) Parlec EROS Collets
(8) Tap Collets
(1) Wrench for TG/DA Chucks
(1) Wrench for Parlec EROS Chucks
(1) Huot Tool Scoot Tool Cart
Rigid Tapping
(15) Kennametal TG Collet Chucks
(17) Kennametal DA Collet Chucks
(5) Parlec EROS Collet Chucks
(2) Tapping Chucks
(1) Set of TG Collets
(1) Set of DA Collets
(18) Parlec EROS Collets
(8) Tap Collets
(1) Wrench for TG/DA Chucks
(1) Wrench for Parlec EROS Chucks
(1) Huot Tool Scoot Tool Cart
