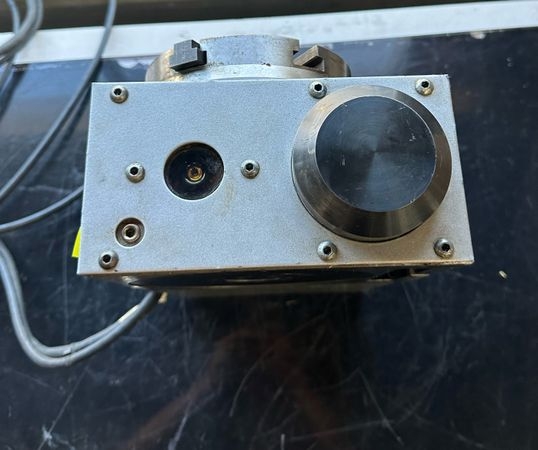

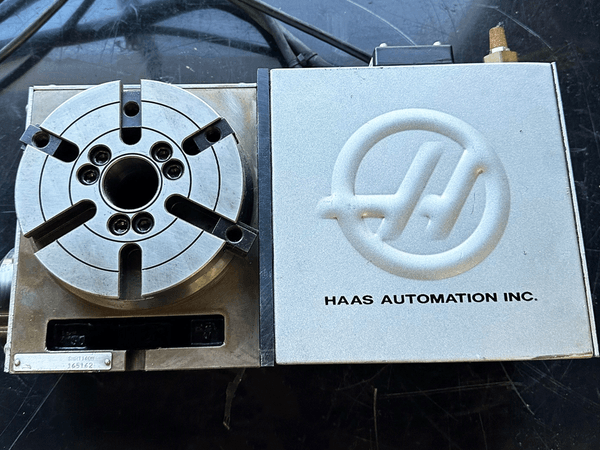

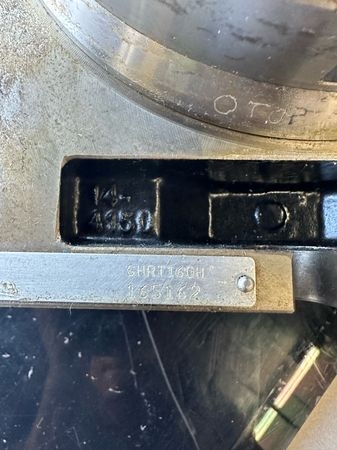

Pre-owned HAAS HRT-160 2008 Tooling and Workholding. This Tooling and Workholding has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Tooling and Workholding is...Read More
Rigging:
Free
Specs:
PLATTER
Platter Diameter: 6.30"
Max Weight on Platter (w/support): 90 lbs
Max Weight on Platter (unsupported): 45 lbs
Number of Std T-Slots: 6 @ 60°
SPINDLE
Max Speed: 130 °/sec
Max Torque: 150 ft-lb
Runout Max: .0005"
Center Height 5"
Backlash: 30 arc-sec
Brake Torque: @ 100 psi/6.9 bar
Gear Ratio: 63:1
Timing: 2:1
INDEXING
Accuracy (±): ± 15 arc-sec
Repeatability: 10 arc-sec
Resolution: 0.001 °
Worm Gear Dia: 4.7"
Max Rotation/Step: 999.999 °
Max Air: 150 PSI
Weight 140lbs
Platter Diameter: 6.30"
Max Weight on Platter (w/support): 90 lbs
Max Weight on Platter (unsupported): 45 lbs
Number of Std T-Slots: 6 @ 60°
SPINDLE
Max Speed: 130 °/sec
Max Torque: 150 ft-lb
Runout Max: .0005"
Center Height 5"
Backlash: 30 arc-sec
Brake Torque: @ 100 psi/6.9 bar
Gear Ratio: 63:1
Timing: 2:1
INDEXING
Accuracy (±): ± 15 arc-sec
Repeatability: 10 arc-sec
Resolution: 0.001 °
Worm Gear Dia: 4.7"
Max Rotation/Step: 999.999 °
Max Air: 150 PSI
Weight 140lbs
Options:
mfg 2008
came off Haas VF2SS

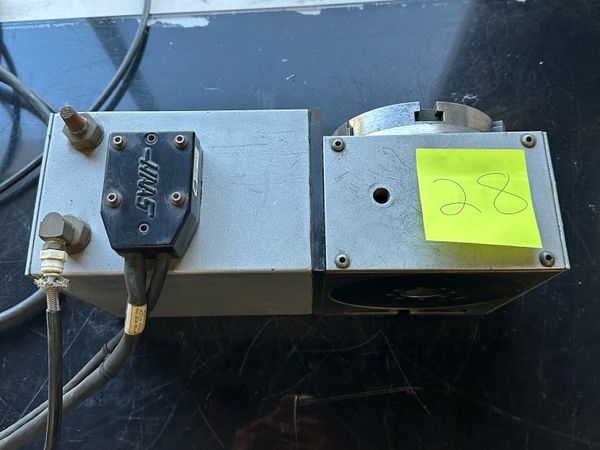

Cables and Faceplate included
came off Haas VF2SS
Cables and Faceplate included
