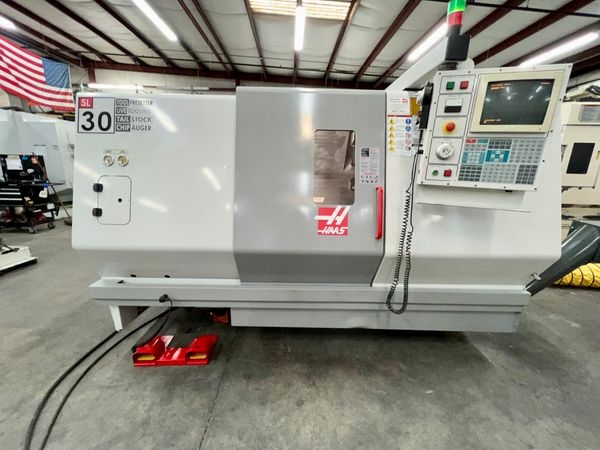

Pre-owned HAAS SL30TM 1999 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote ...Read More
Notify Me:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.3"
Z Axis Travel: 34"
Rapid Rate Z Axis: 710 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 710 IPM
Max Turning Dia: 17"
Max Turning Length: 34"
Max Swing: 30"
Turret Stations:12 Live
Tool Motor: 5 HP
Live Tool RPM: 3,000 RPM
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Max Torque 300 ft-lbf
Dimensions: 171" x 30" x 98"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 11.3"
Z Axis Travel: 34"
Rapid Rate Z Axis: 710 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 710 IPM
Max Turning Dia: 17"
Max Turning Length: 34"
Max Swing: 30"
Turret Stations:12 Live
Tool Motor: 5 HP
Live Tool RPM: 3,000 RPM
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Max Torque 300 ft-lbf
Dimensions: 171" x 30" x 98"
Weight: 14,300 LBS
Options:
HAAS CNC Control
Tool Presetter
Live Tooling
Tool Presetter
Live Tooling
